[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer 10KHz -1.5GHz Latest HW Version 3.6 | HF VHF UHF Antenna Analyzer

[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer 10KHz -1.5GHz Latest HW Version 3.6 | HF VHF UHF Antenna Analyzer

$56.99
$59.99 $56.99
Sale Sold out
Shipping calculated at checkout.

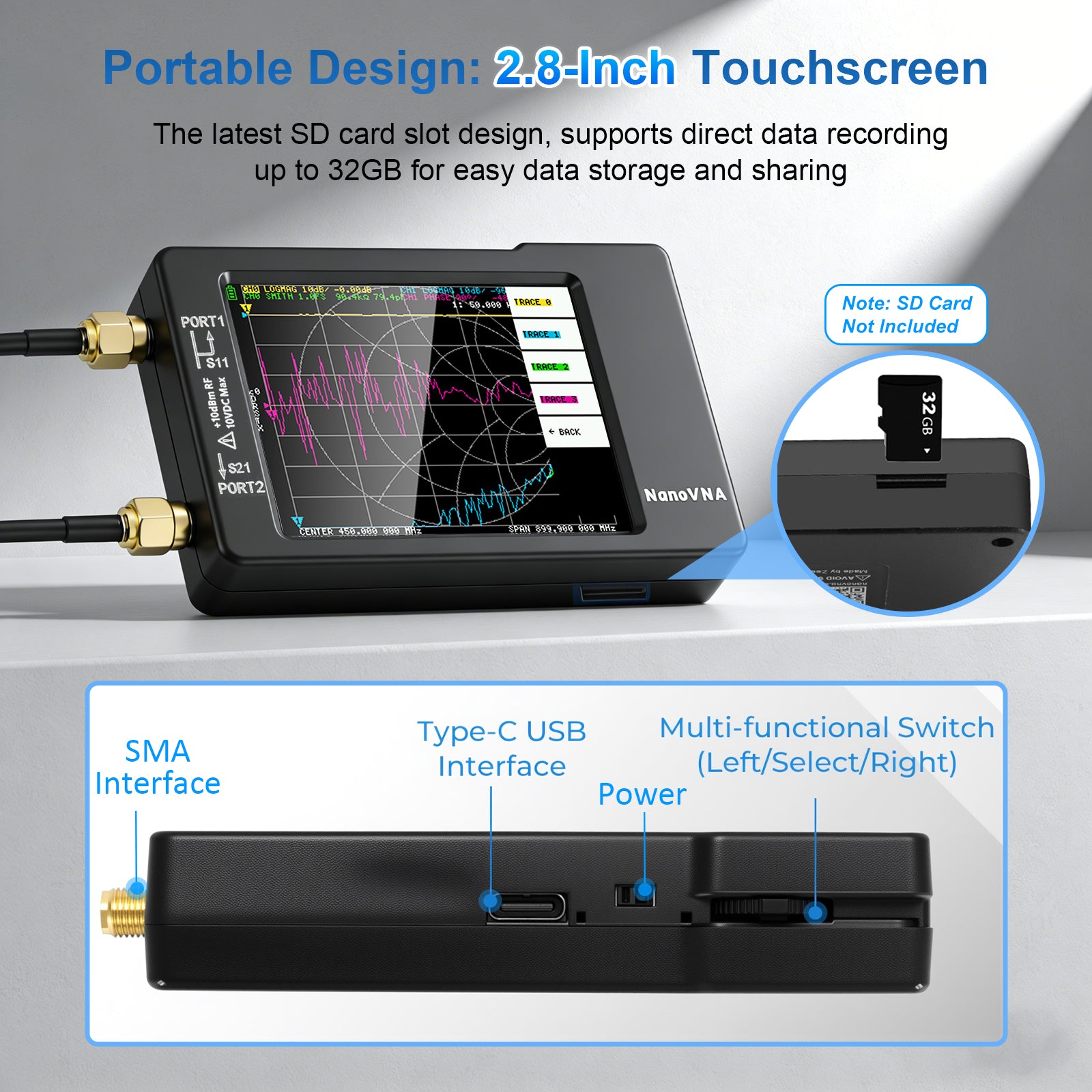

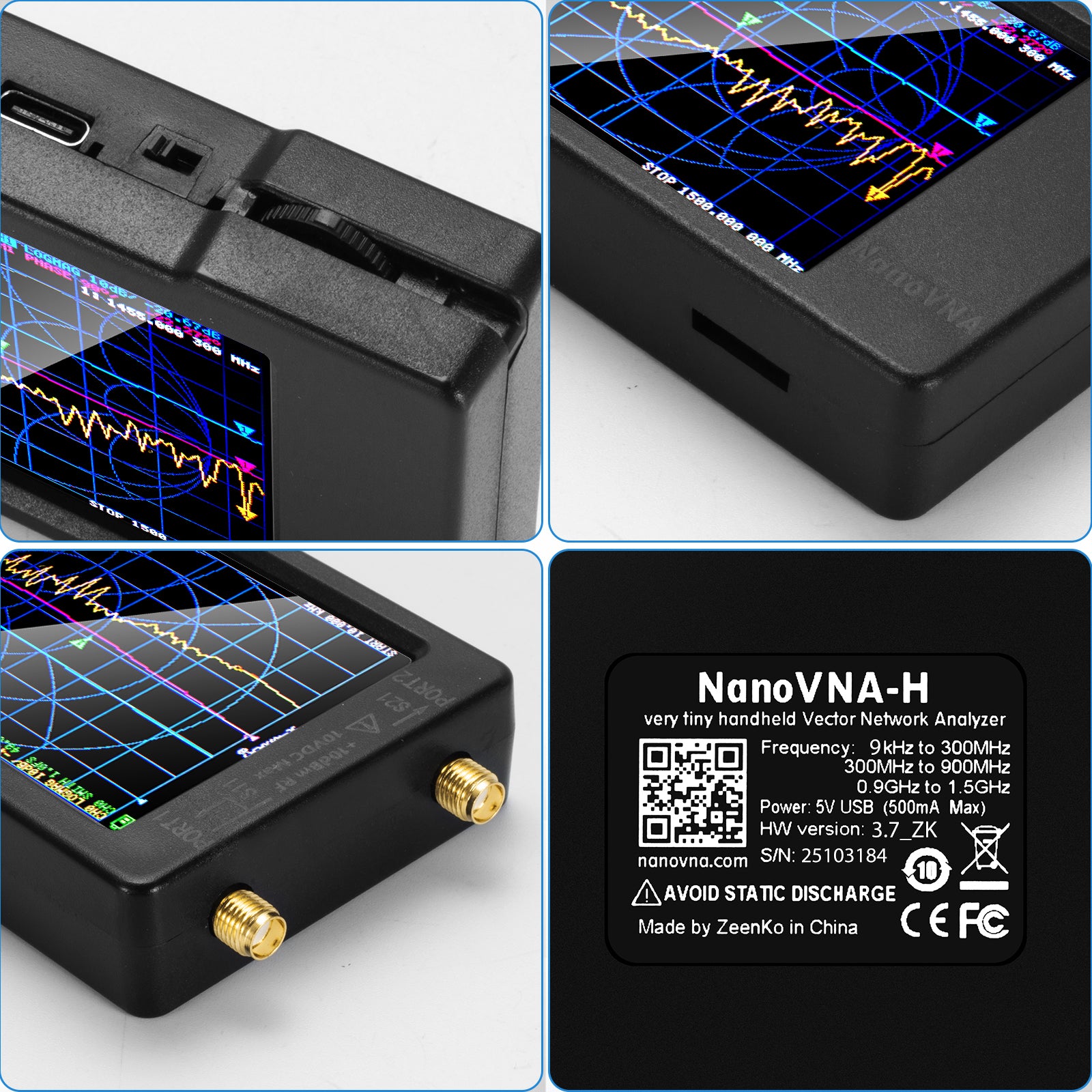

  • [UPGRADED NanoVNA-H] New HW Version V3.6. It is upgradeable as new firmware is developed. With MicroSD card port now can have the measurement data or the screenshots saved in the it at anytime. Added battery circuit management, more secure. Redesigned PCB, you can connect to mobile phone with Type C-Type C cable (original PCB needs OTG cable), see a clear HD image on your phone. Added a ABS case, which is protective and dust-proof. Disply: 2.8 inch TFT (320 x240)

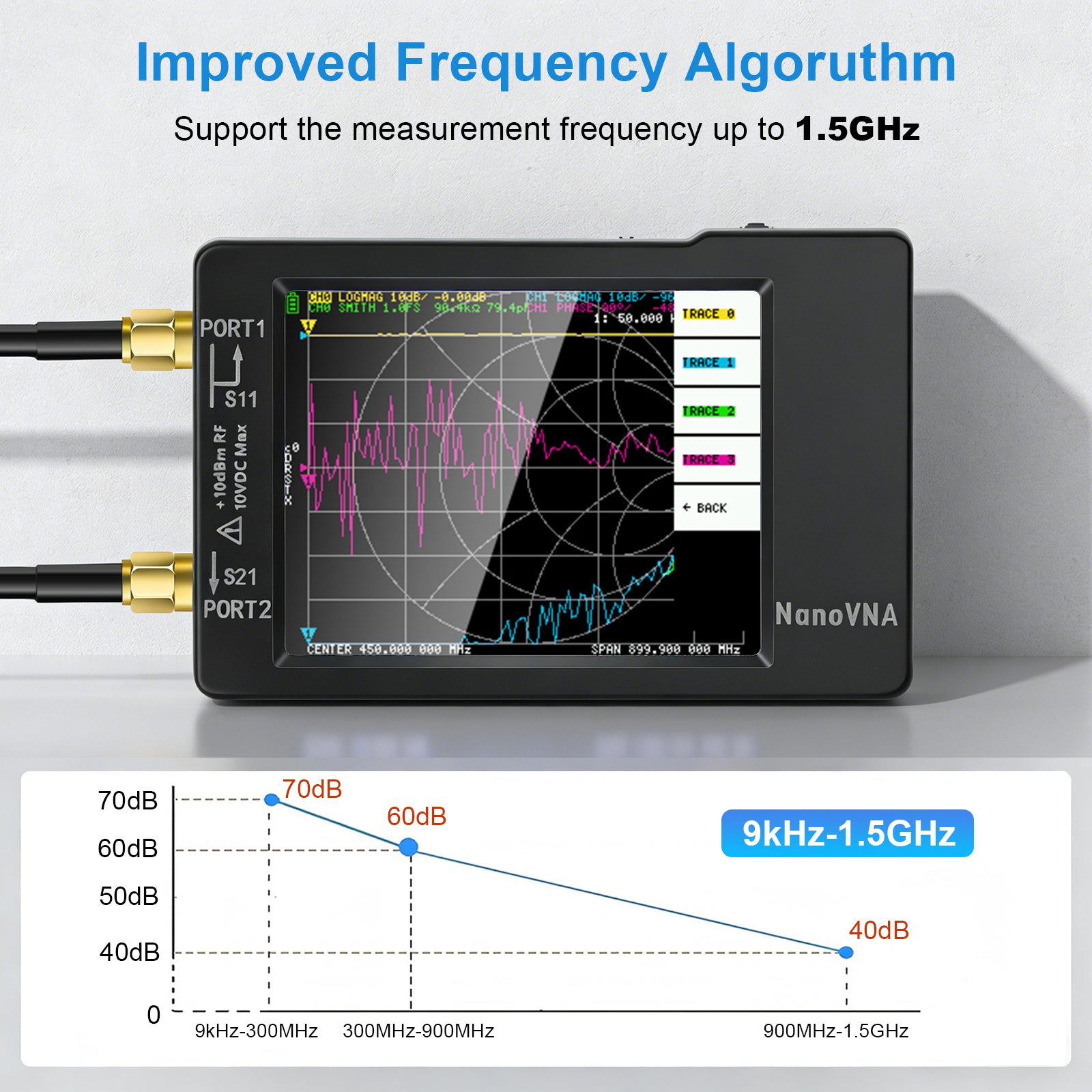

  • [IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics

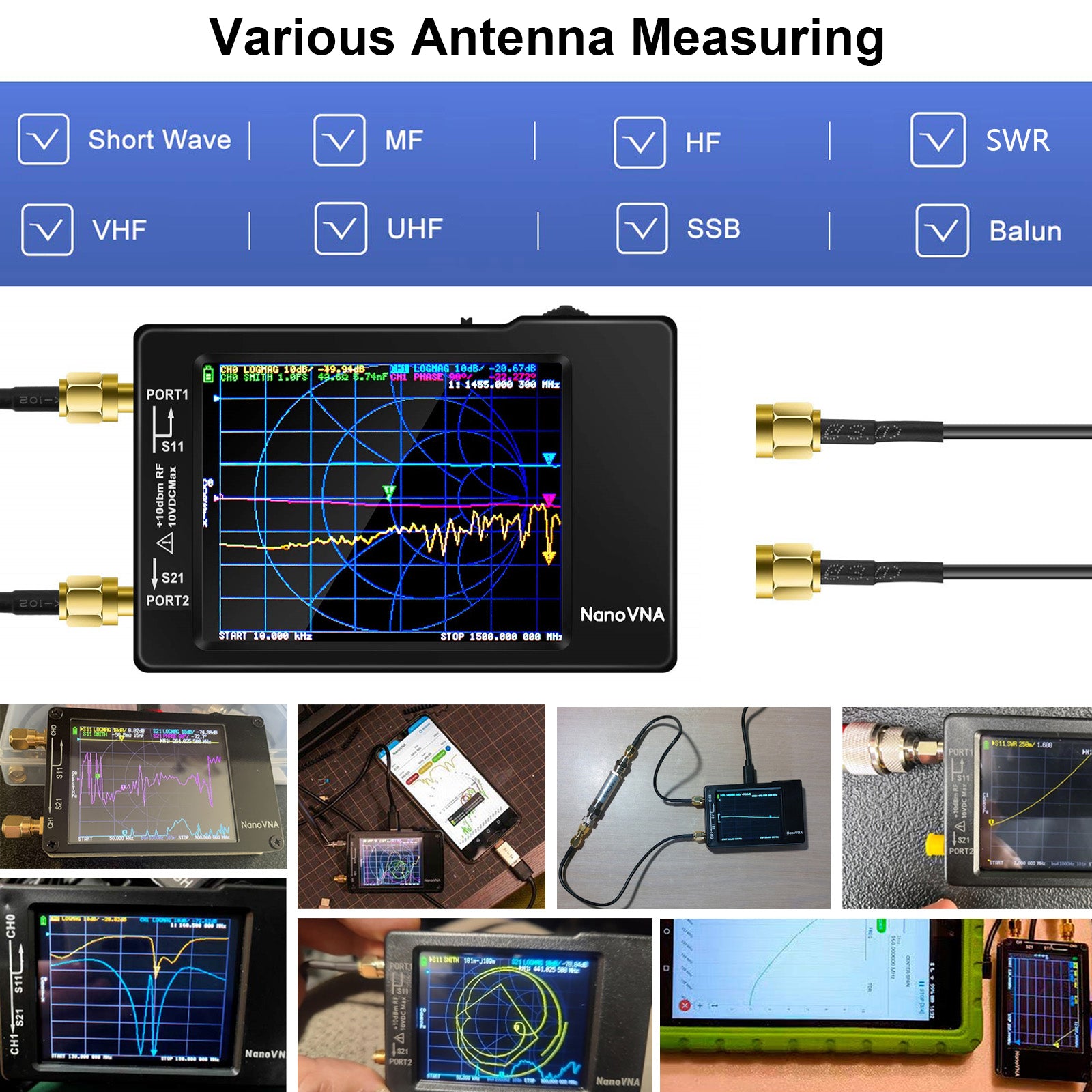

  • [MULTIPLE FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. The CH0 output level is increased to 0dBm when using the fundamental wave, resulting in more accurate reflection measurement

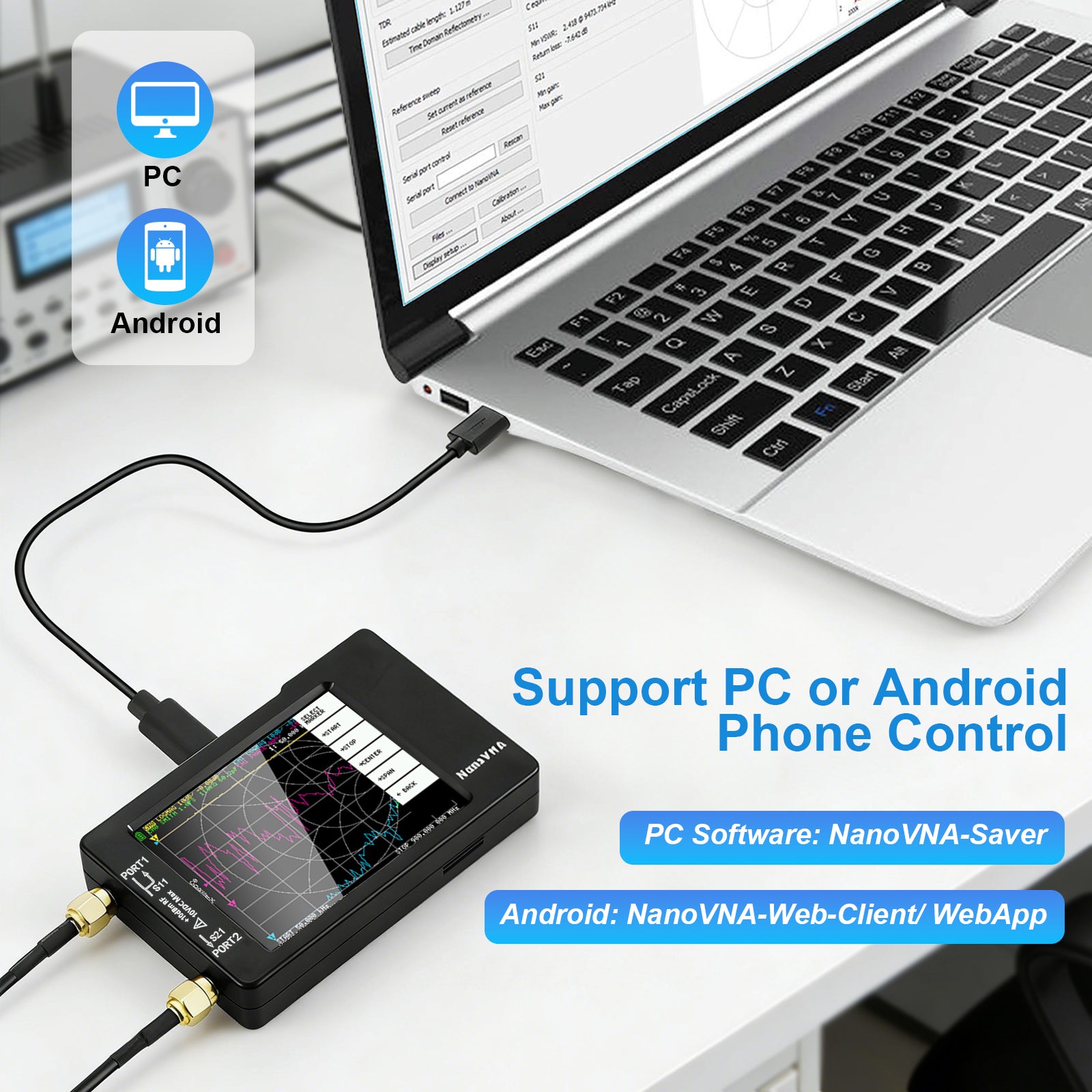

  • [SUPPORT ANDROID PHONE & PC SOFTSARE CONTROL] Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software. There is a PC interface that adds functionality and lets you work interactively on a bigger screen. Supports time domain analysis function (TDR). Compatible with most Android mobile phones, convenient for connecting to mobile phones. Support Windows Computer Control
  • [STRONG AND SECURE POWER SUPPLY] This VNA is battery powered or USB powered. Built in 650mAh battery, could work for 2 hours continuously. For longer measurement time, kindly connect an external power source. The product interface displays battery usage, providing a clear understanding of the power status

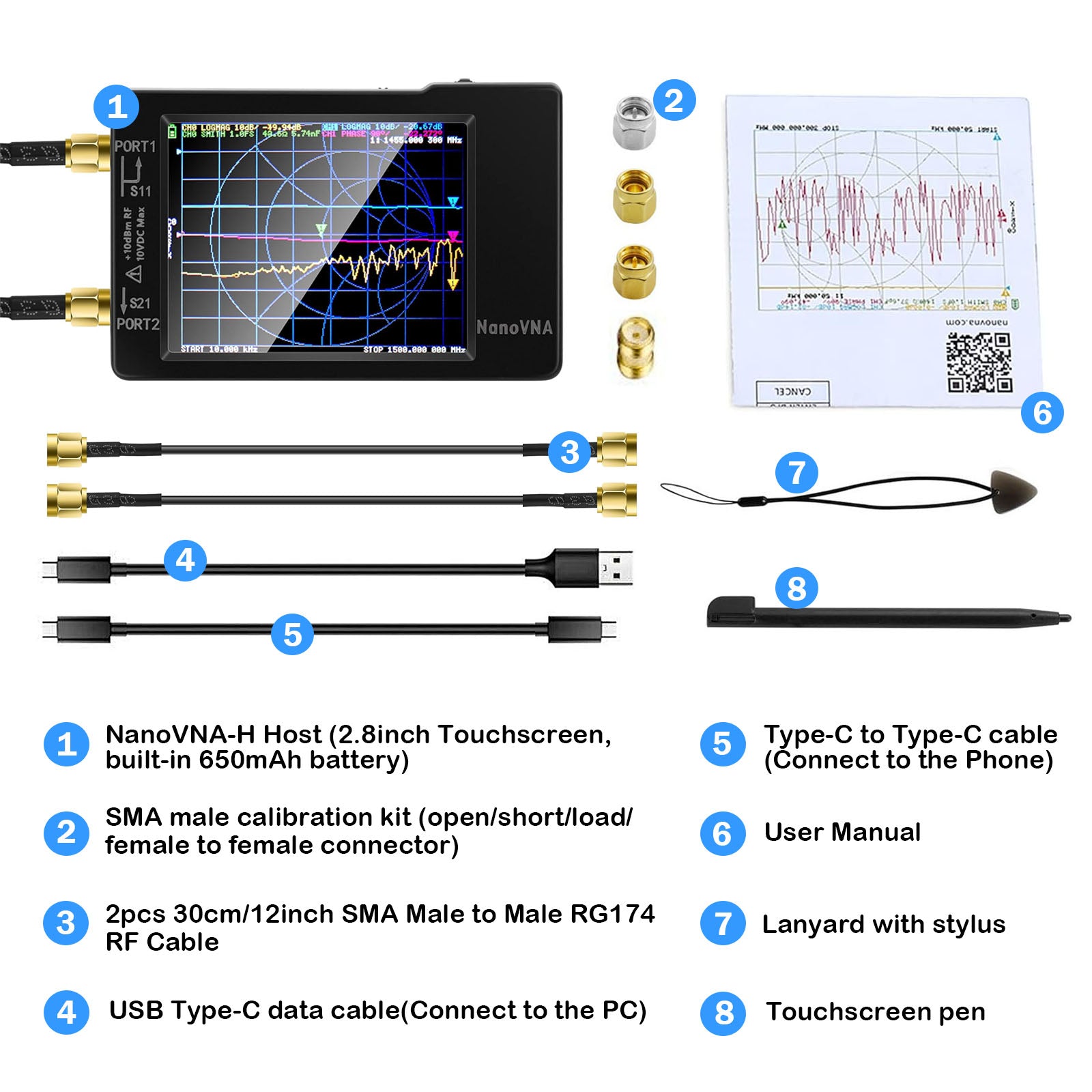

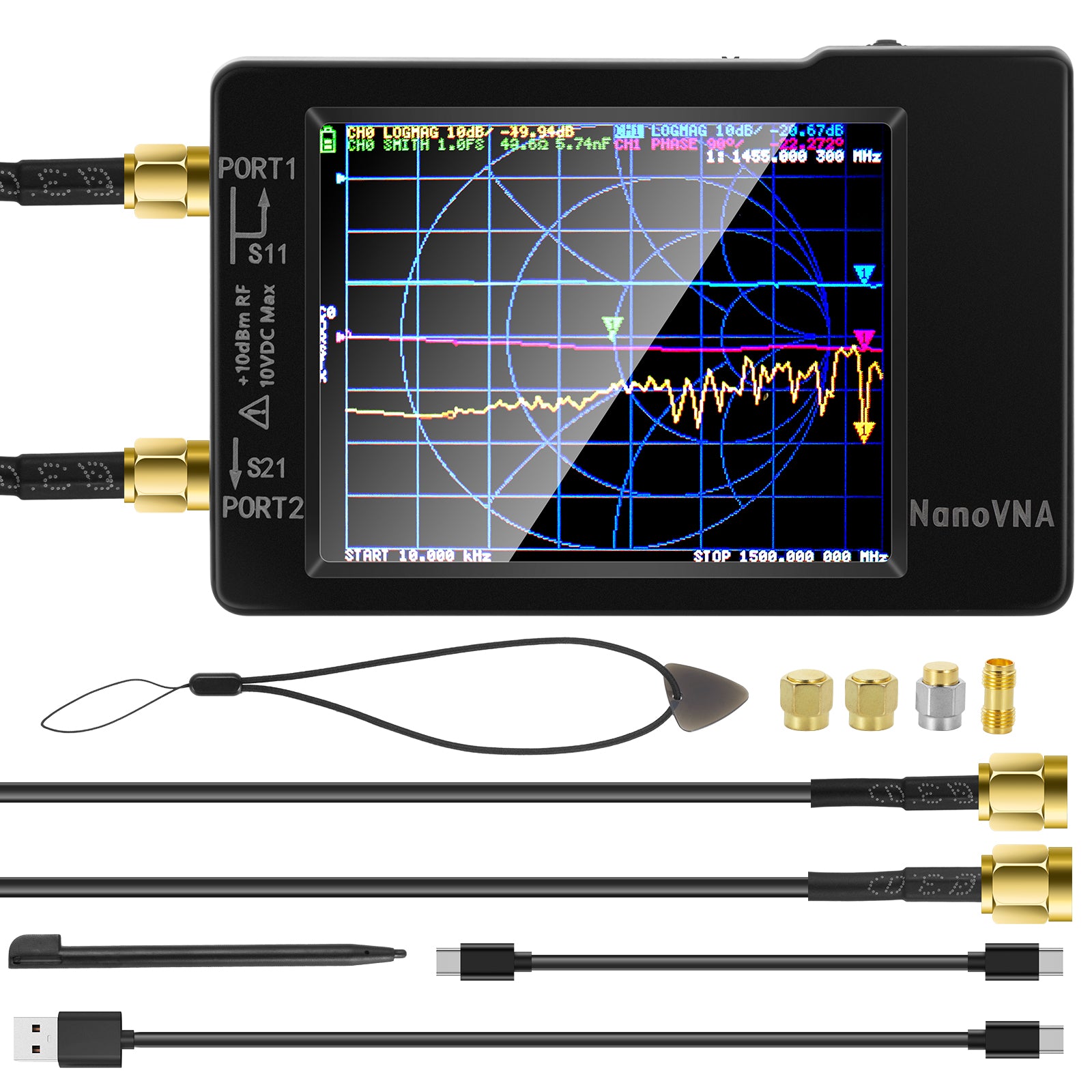

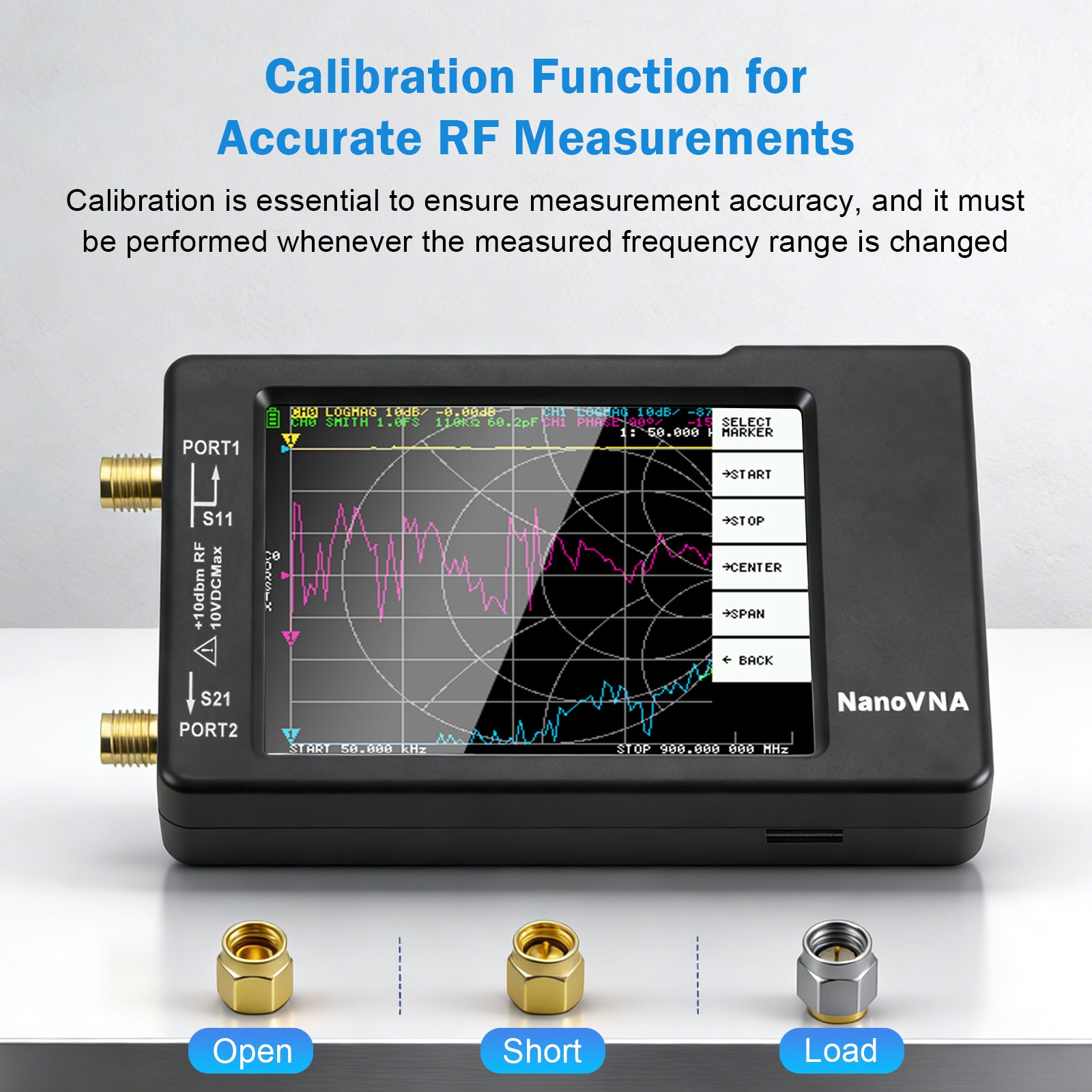

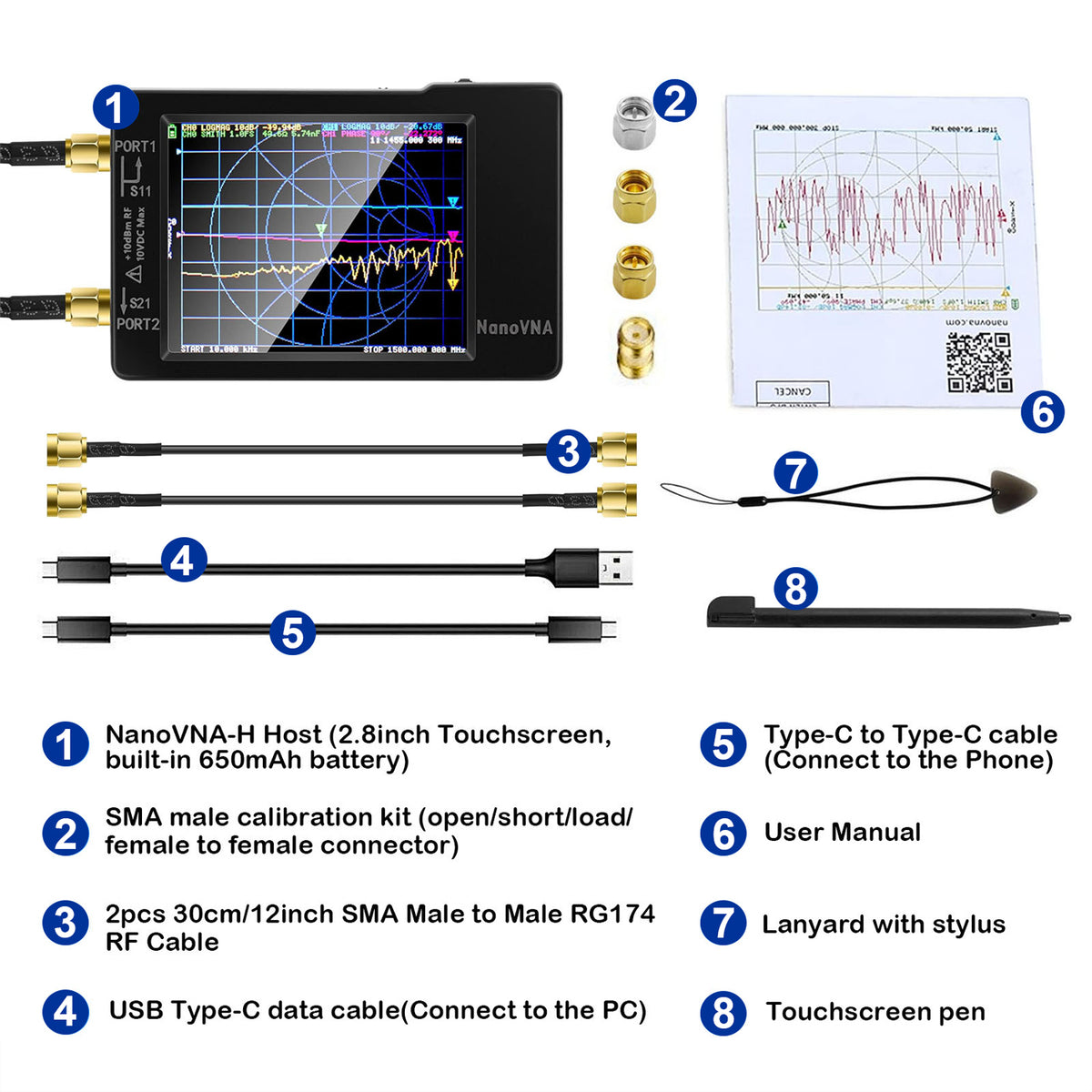

  • [PACKAGE LIST] 1x NanoVNA H host(2.8inch touchscreen, 650mAh rechargeable battery), 2x 30cm SMA male to male RG174 RF cable, 1x SMA simple calibration kit, 1x SMA female to female connector, 1x USB Type-C data cable, 1x USB TypeC-TypeC Line, 1x Touch plectrum, 1x Stylus pen. NOTE: Our nanovna is only compatible with low-speed and supports SPI mode SD card for now. The perfect gift for RF electronics engineers, researchers, and ham radio hobbyist
