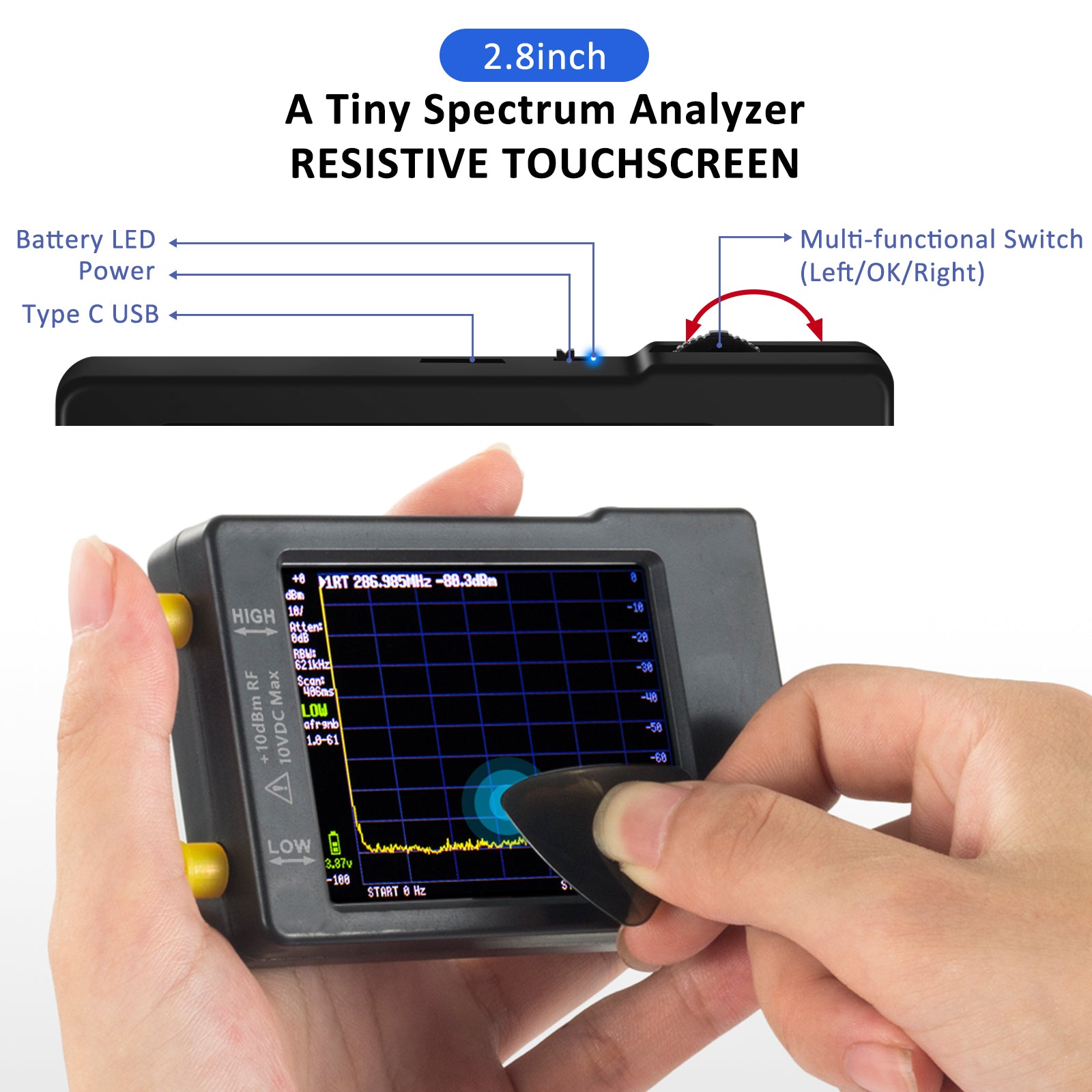

Portable Tinysa Spectrum Analyzer, AURSINC V0.3.1 Handheld Frequency Analyzer, Signal Generator 100kHz to 960MHz MF/HF/VHF UHF Input ESD Protected Function with 2.8 inch Touchscreen

Portable Tinysa Spectrum Analyzer, AURSINC V0.3.1 Handheld Frequency Analyzer, Signal Generator 100kHz to 960MHz MF/HF/VHF UHF Input ESD Protected Function with 2.8 inch Touchscreen

$62.99
$72.99 $62.99
Sale Sold out
Shipping calculated at checkout.

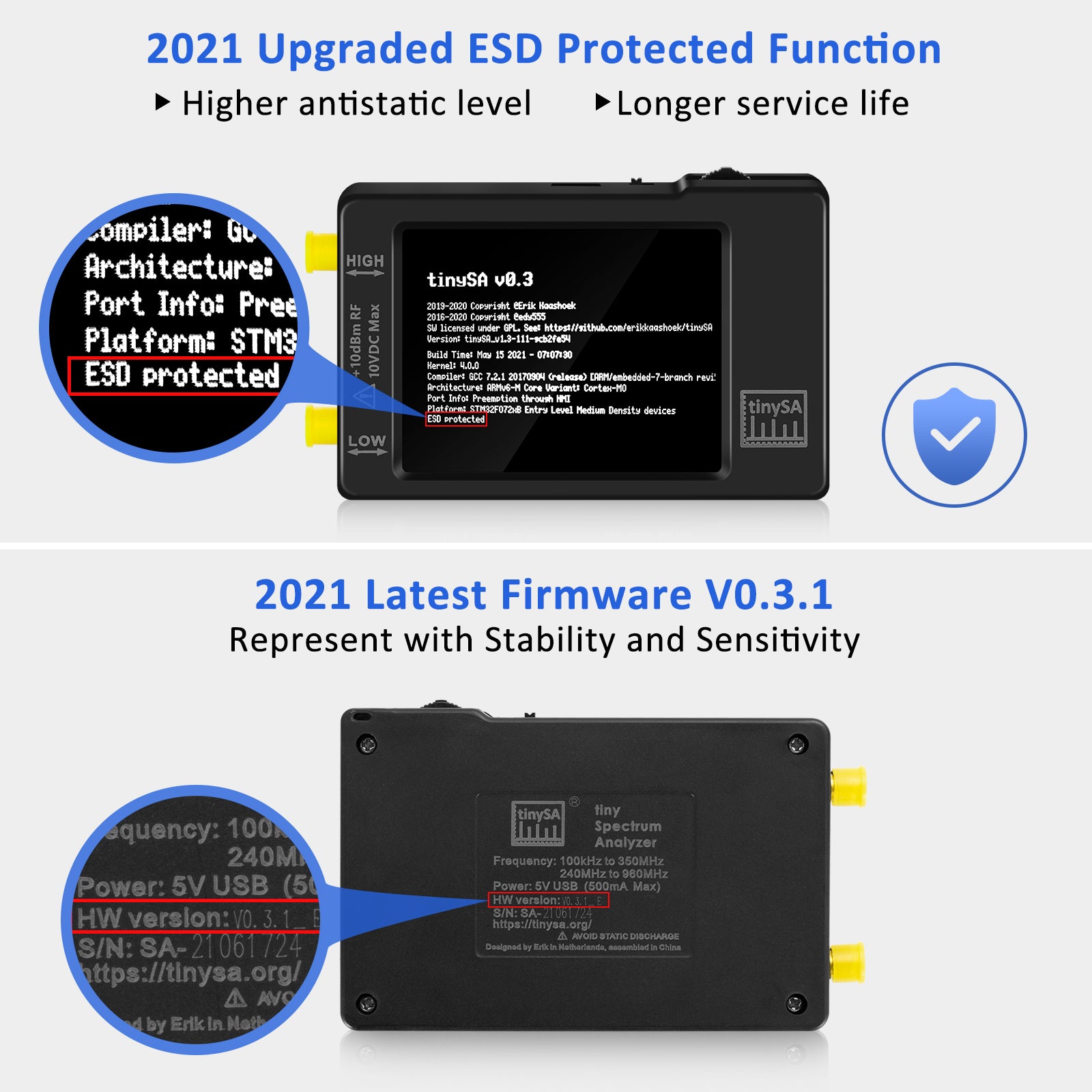

  • [Upgraded Version] AURSINC Tinysa spectrum analyzer produced by Hugen (tinysa .org), with hardware V0.3.1. The firmware of the tinySA can be updated, for newest firmware version update, please refer to: tinysa .org. The version info displayed indicates "ESD Protection" with a diode to improve stability, sensitivity, anti-static level, and longevity

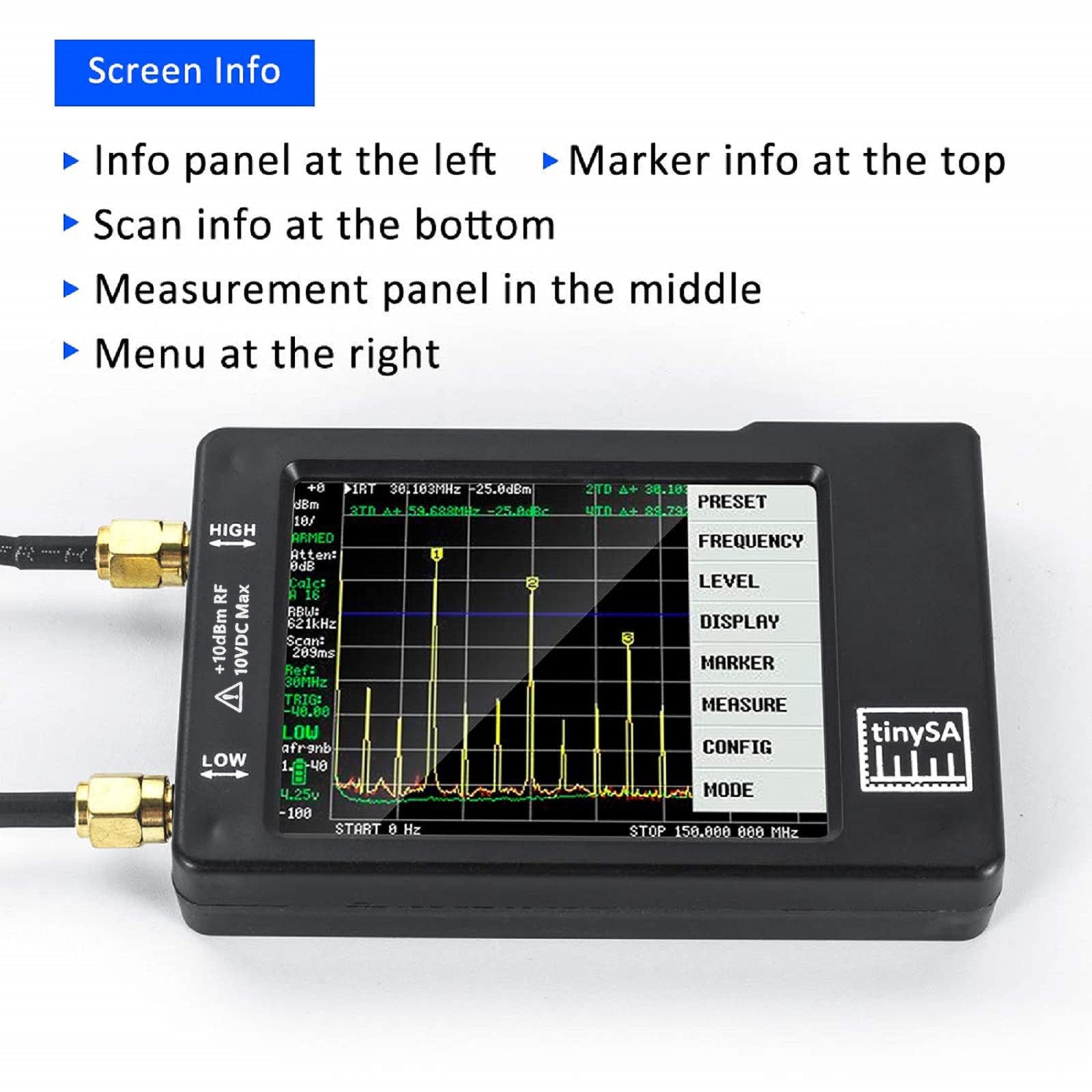

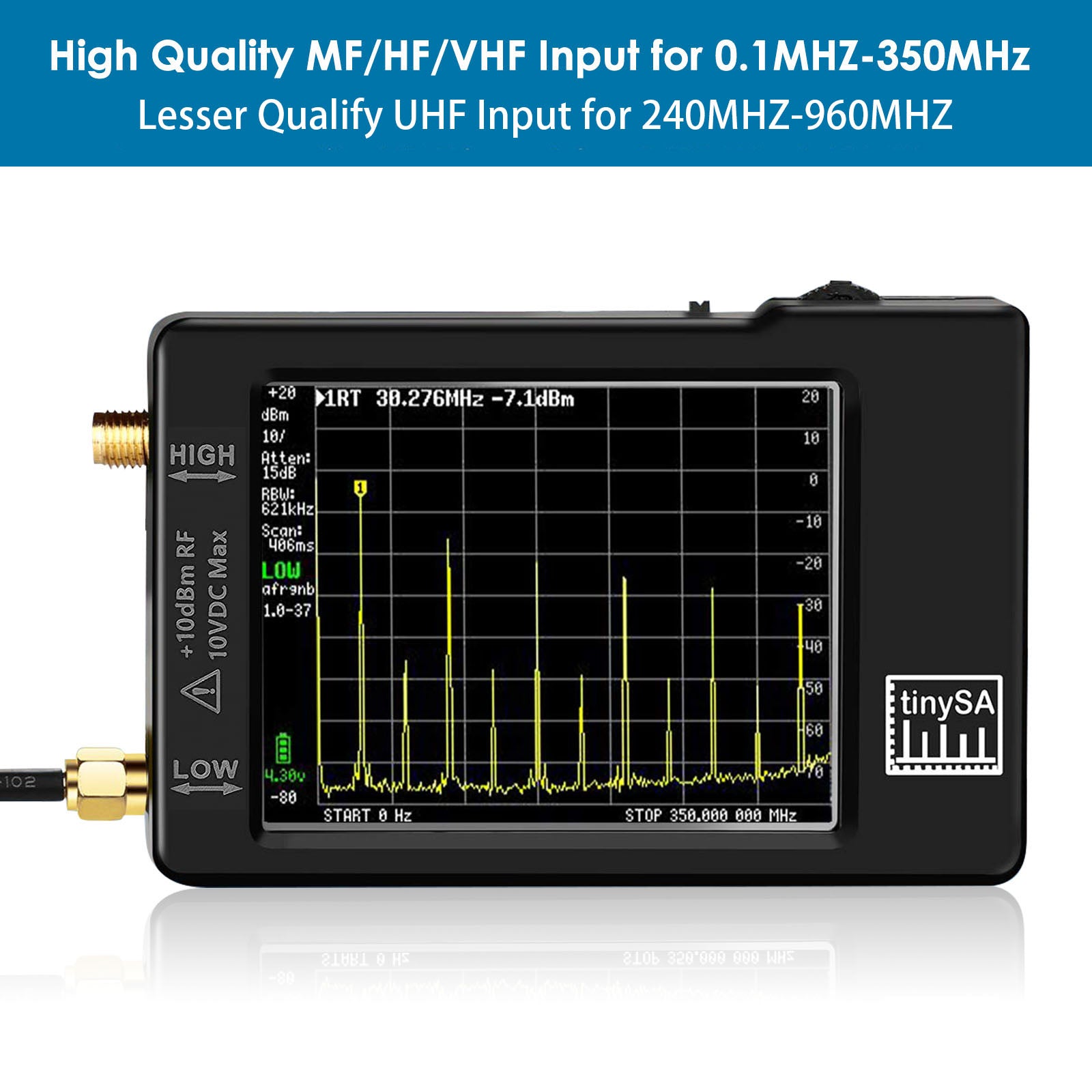

  • [Frequency Range] The tiny sa spectrum analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz. The tinysa includes all the components of a traditional heterodyne swept spectrum analyzer, with a color display showing 290 scan points covering up to the full low or high frequency range

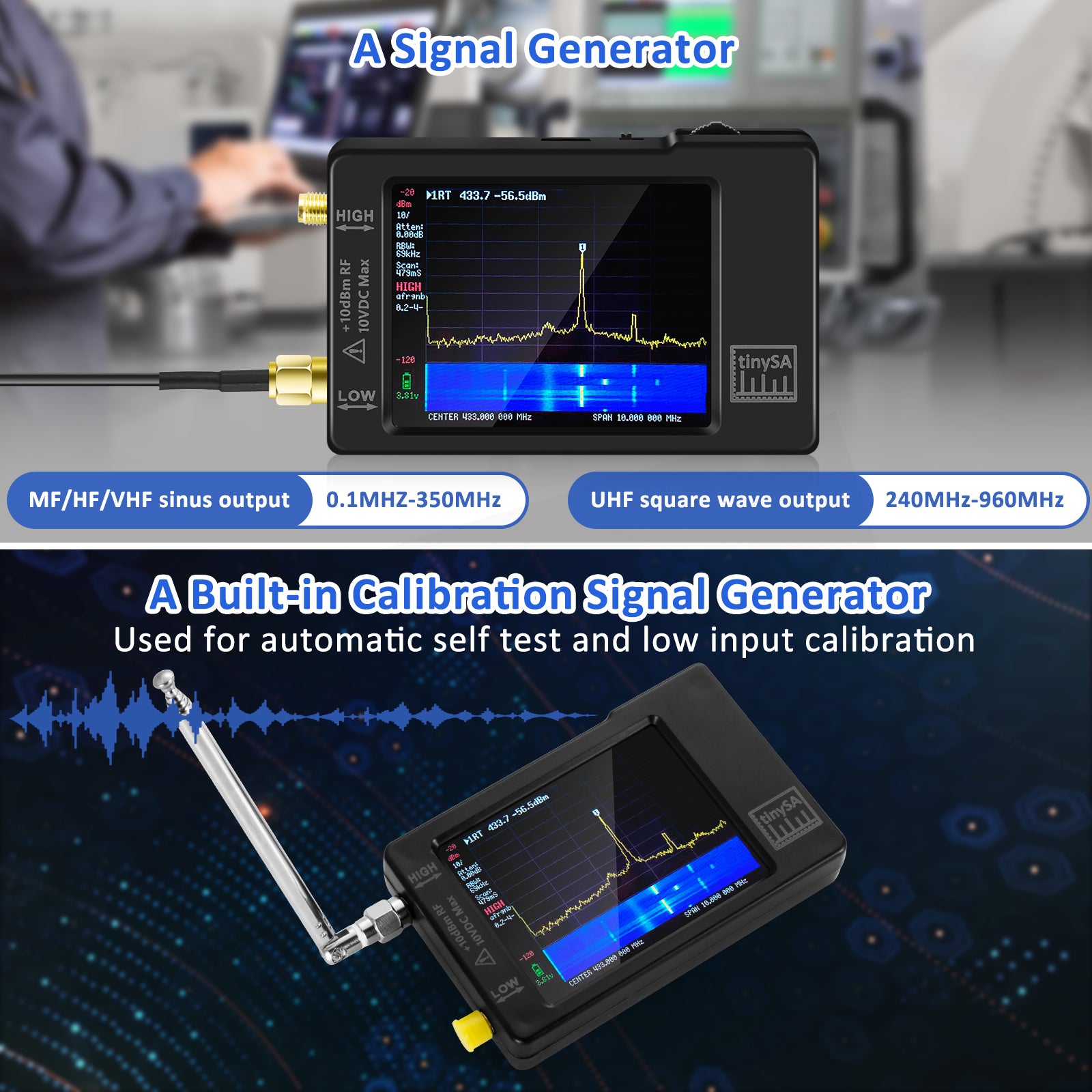

  • [Built-in Calibration Signal Generator] When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator enables automatic self-test and low input calibration

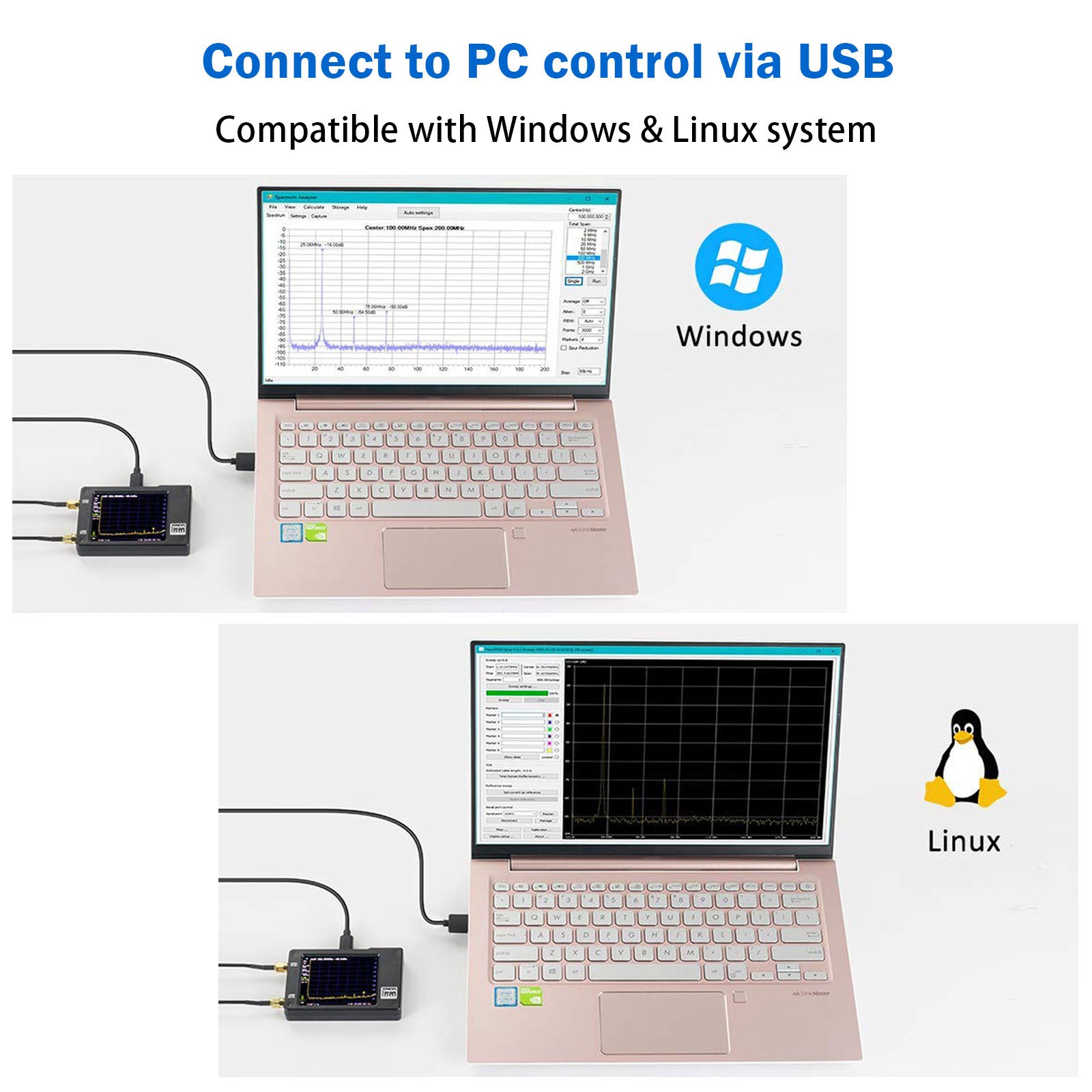

  • [PC Control] The USB interface realizes the Serial over USB (CDC) protocol and a large number of commands can be called through the serial interface. The commands can be used for measurements or updating internal settings. The Windows driver will automatically install upon connecting to a Windows PC. The driver for Linux is built into the kernel. Tinysa-APP is available to control the tinysa and capture its screen

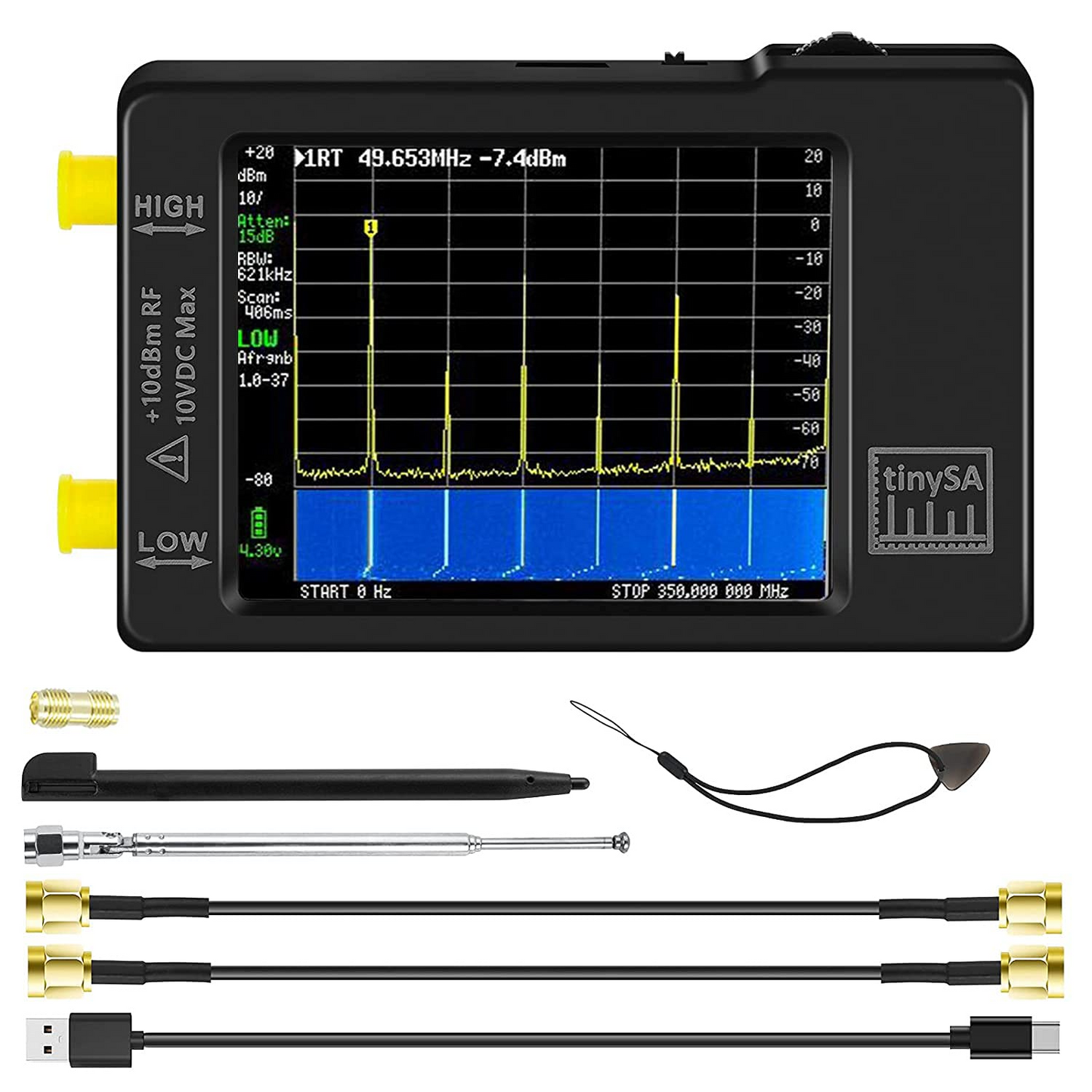

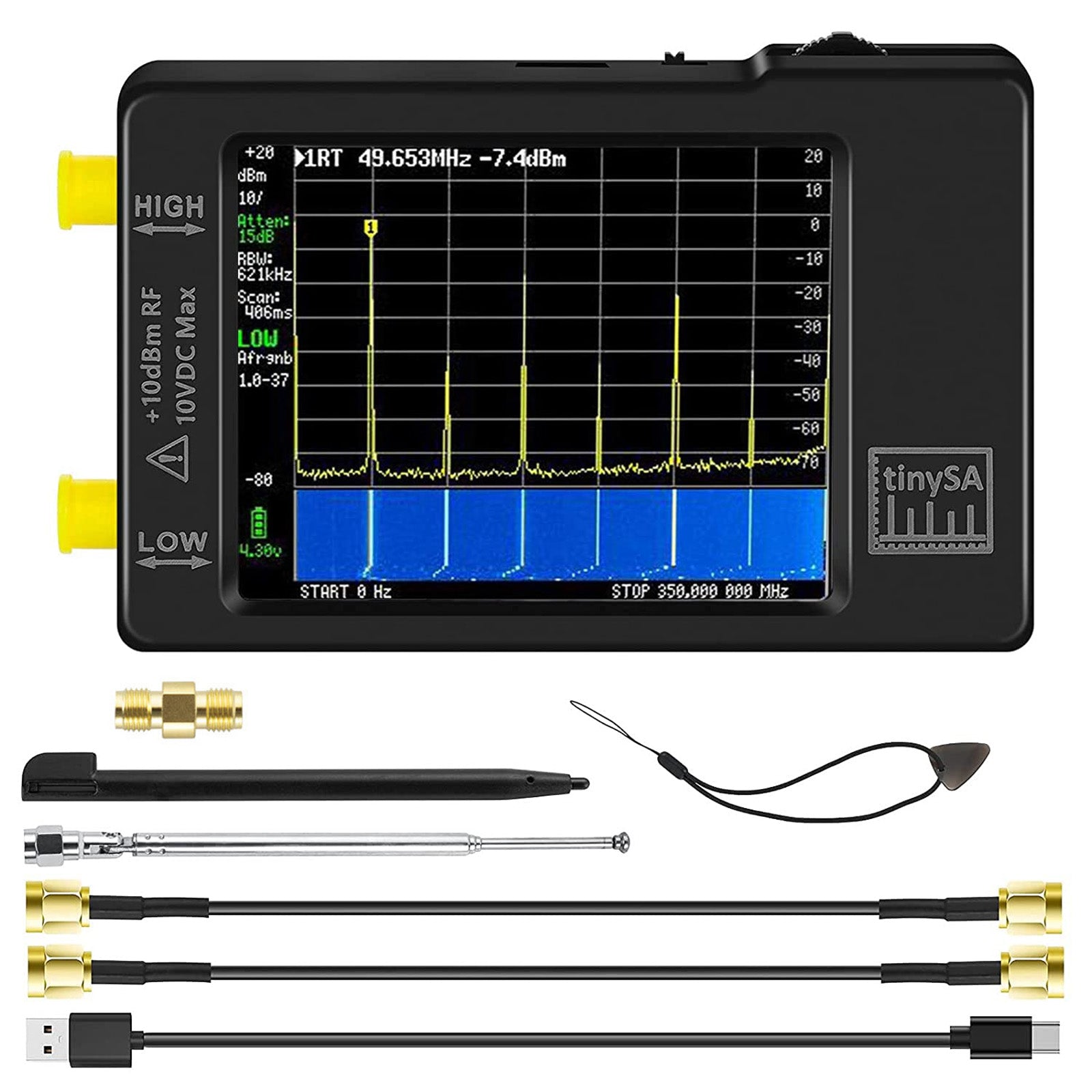

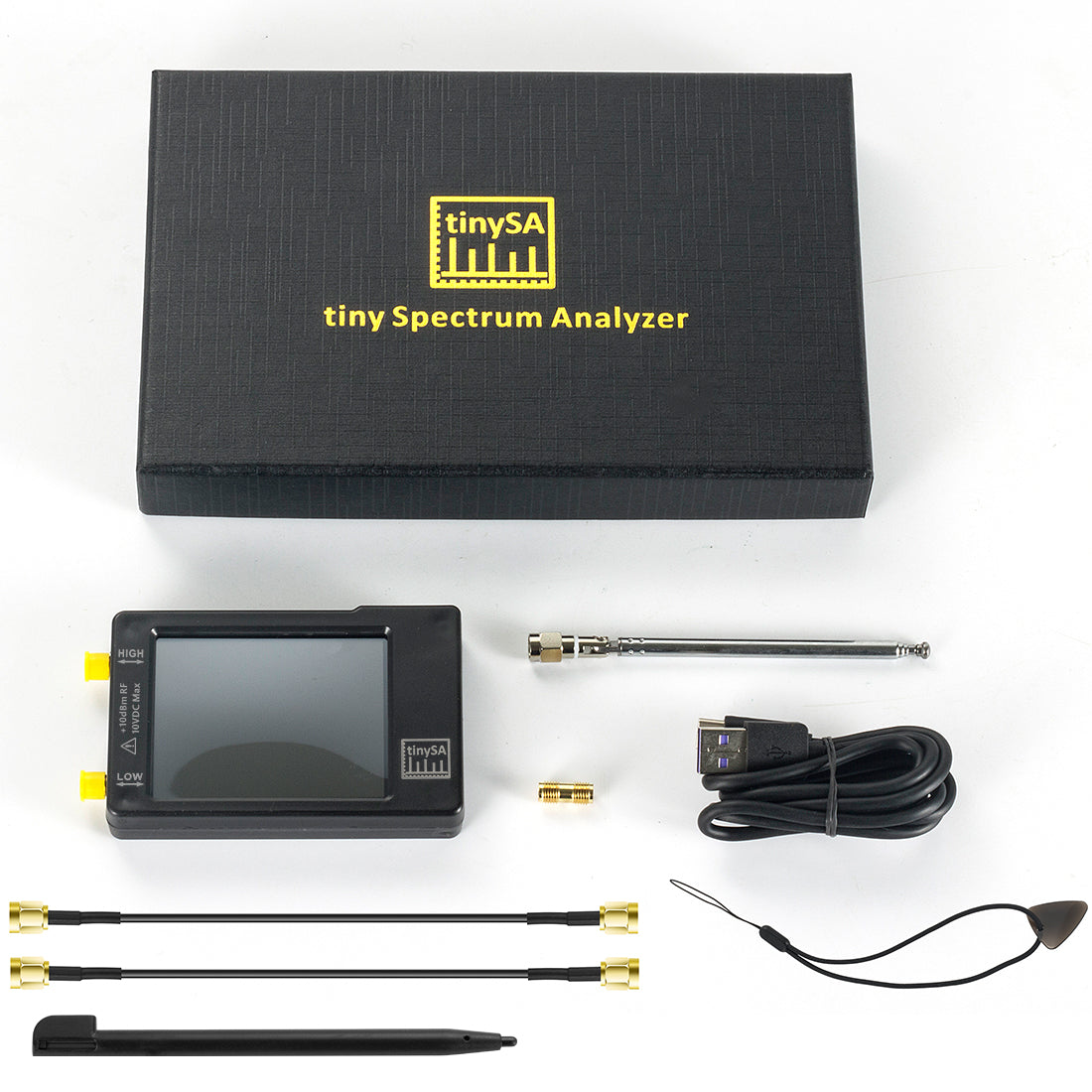

  • [Package List] 1x Tiny Spectrum Analyzer(with 500mah battary, 2.8inch touchsreen) ; 2x 20cm/7.87inch RF Cable; 1x USB-C Cable ; 2x SMA Female to Female Connector; 1x Touchscreen Pen; 1x SMA Telescopic
