AURSINC ZA-048 LDPA Log-Periodic Dipole Array Antenna 400MHz-8GHz for Tinysa Ultra Spectrum Analyzer

AURSINC ZA-048 LDPA Log-Periodic Dipole Array Antenna 400MHz-8GHz for Tinysa Ultra Spectrum Analyzer

$36.99
$36.99 $36.99
Sale Sold out
Shipping calculated at checkout.

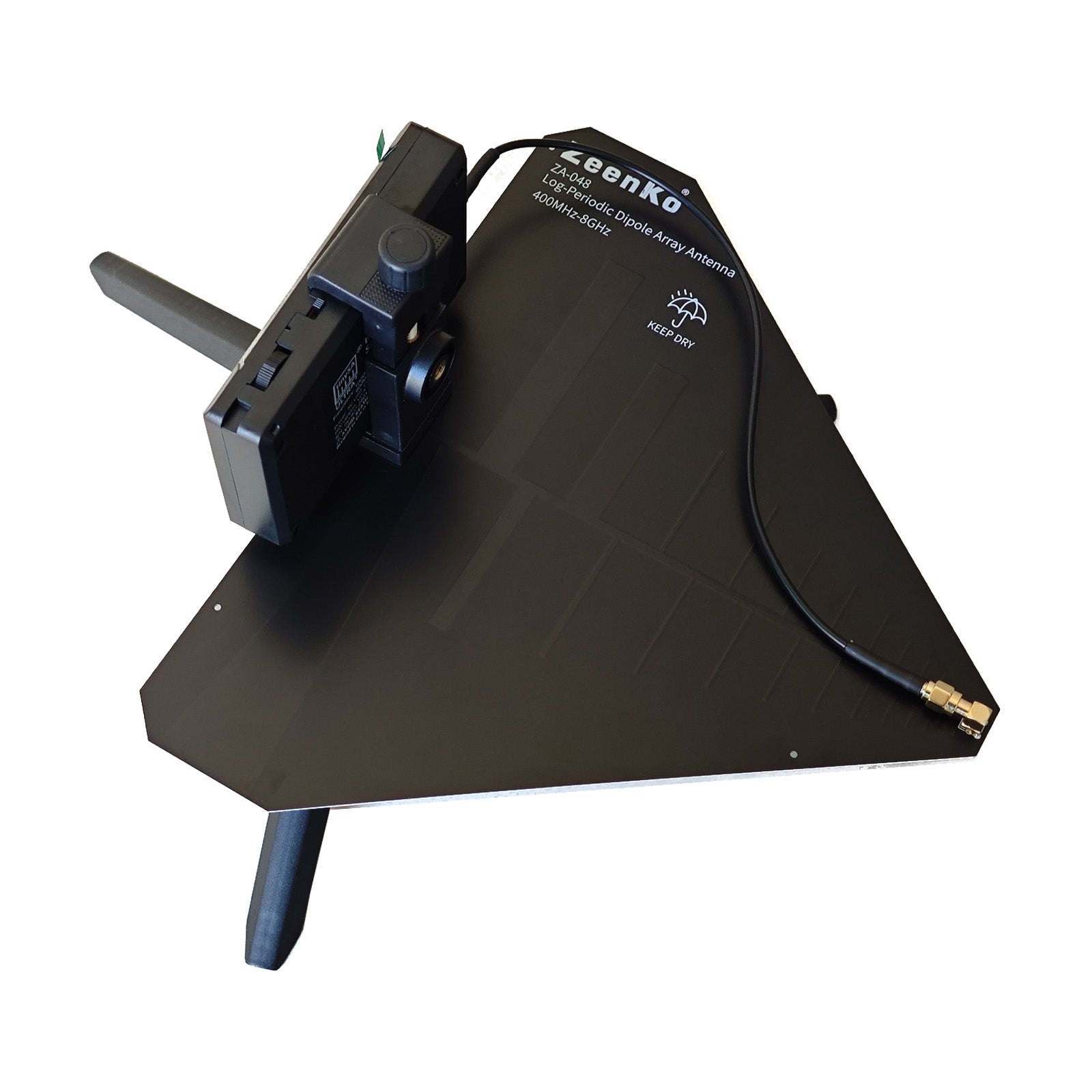

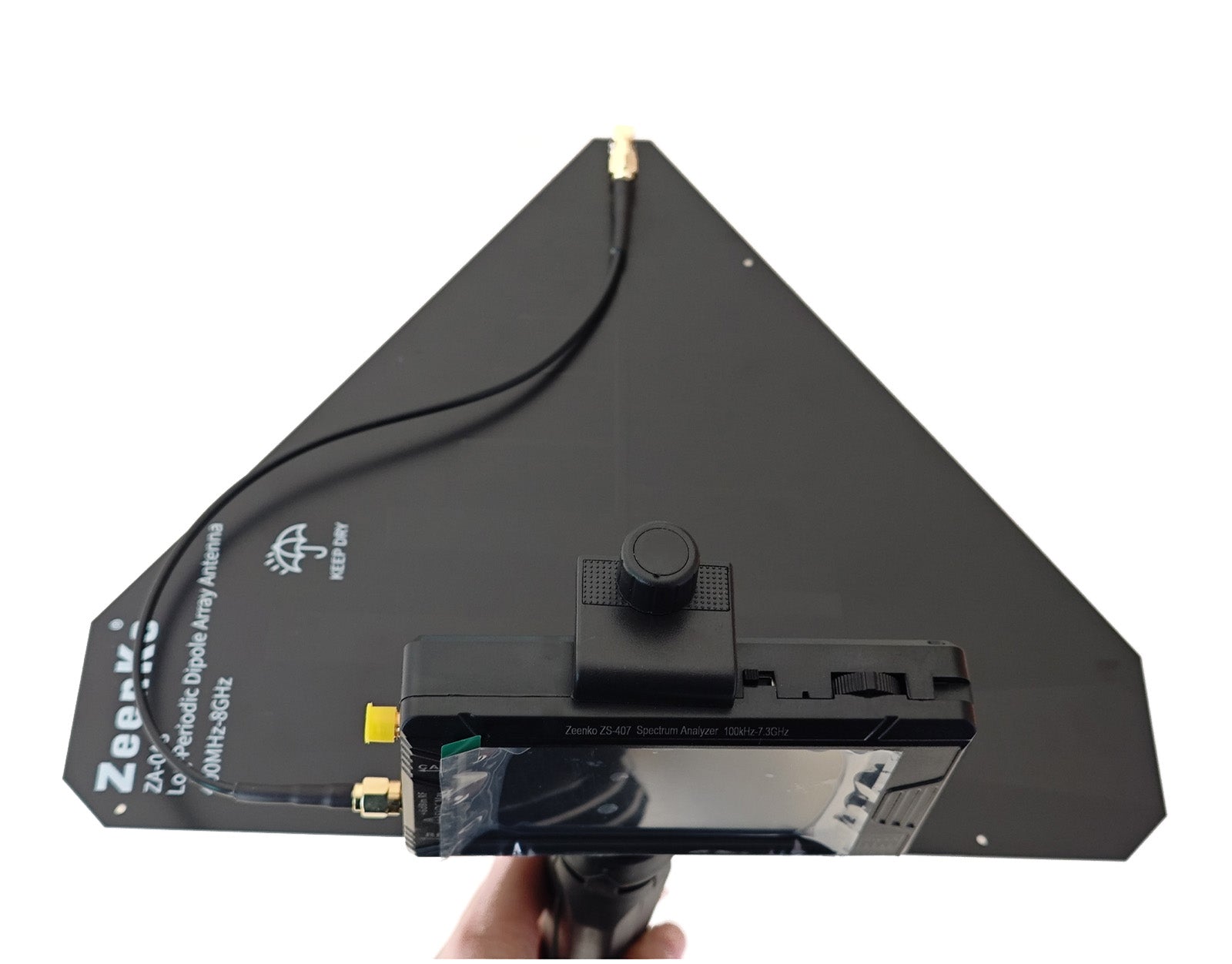

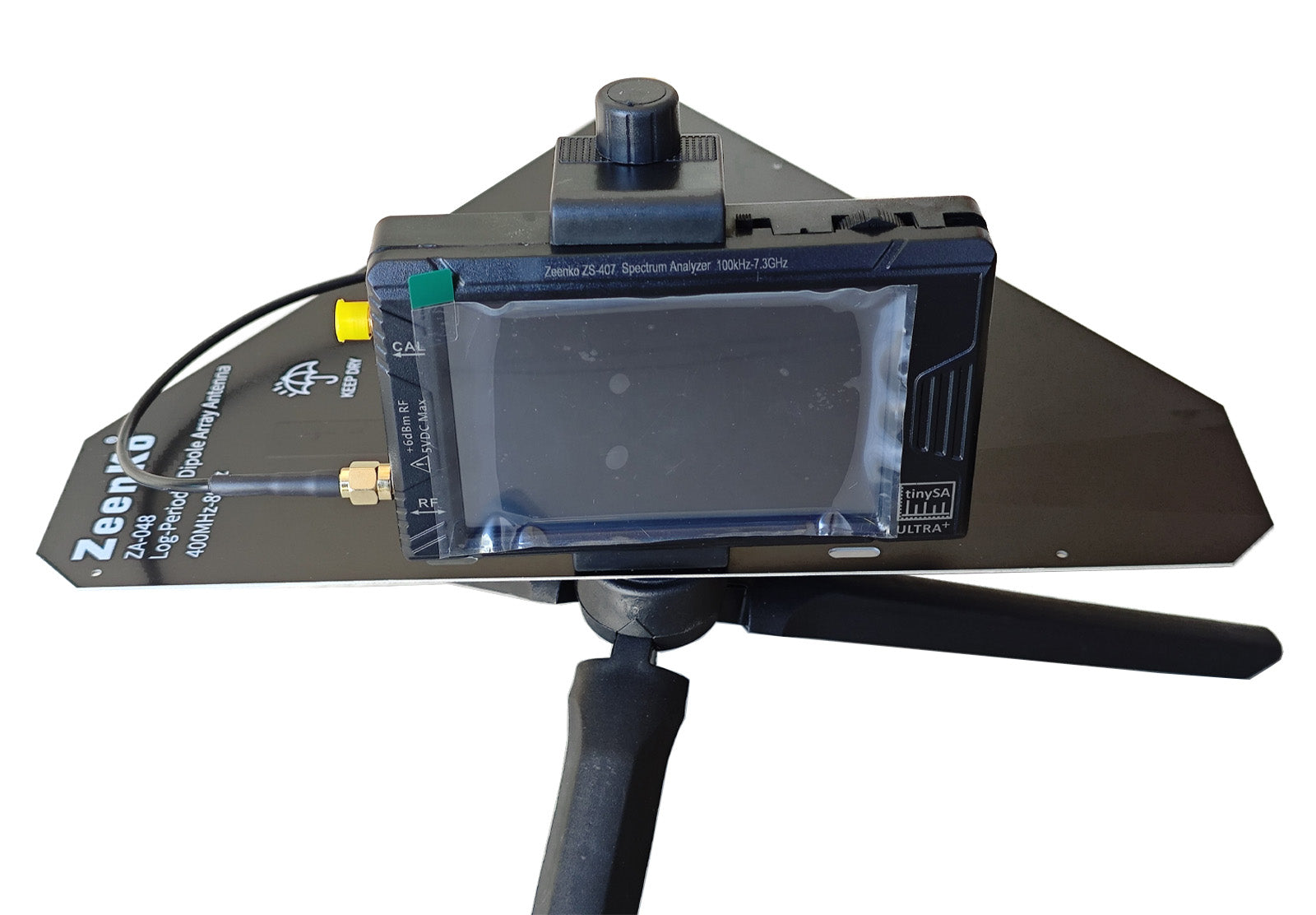

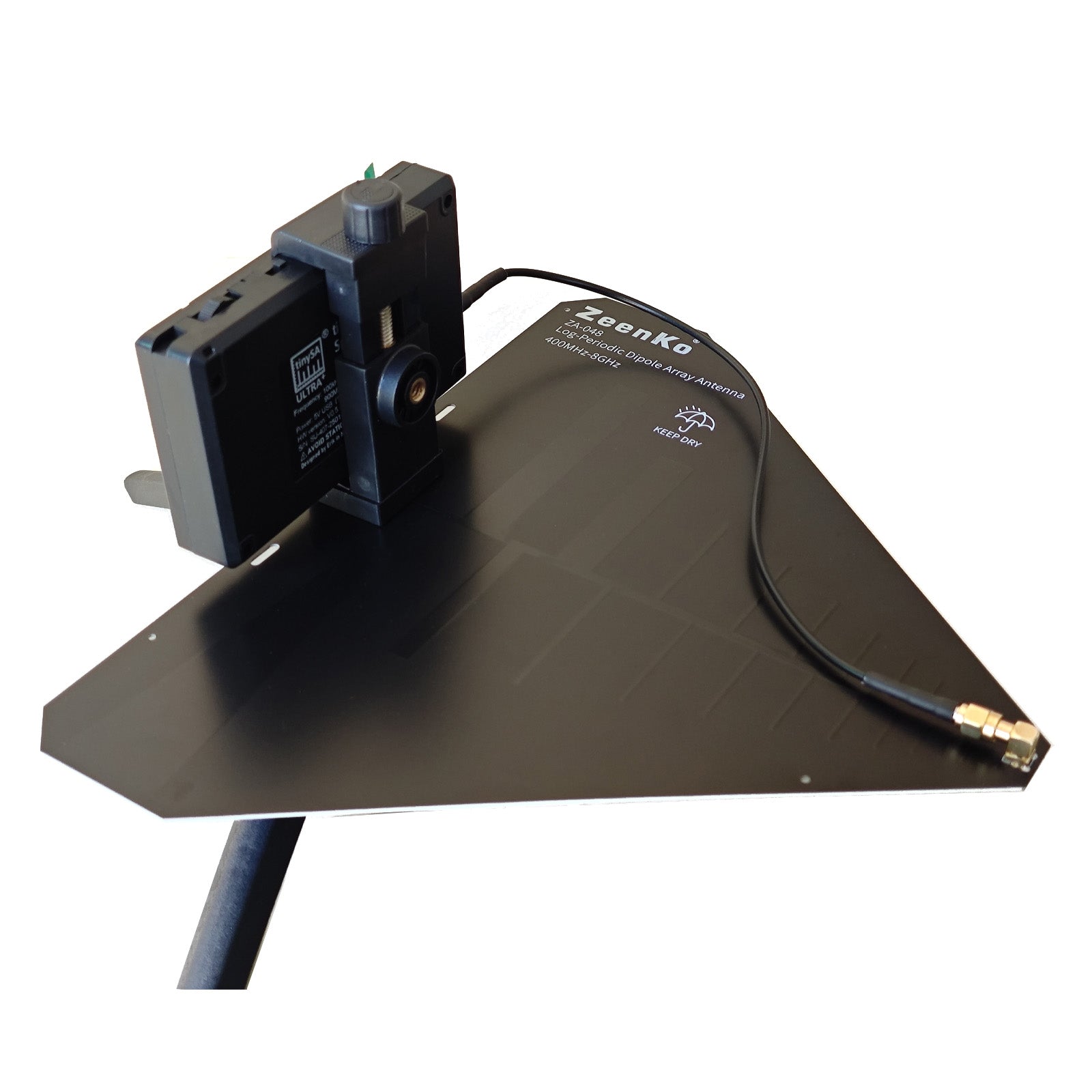

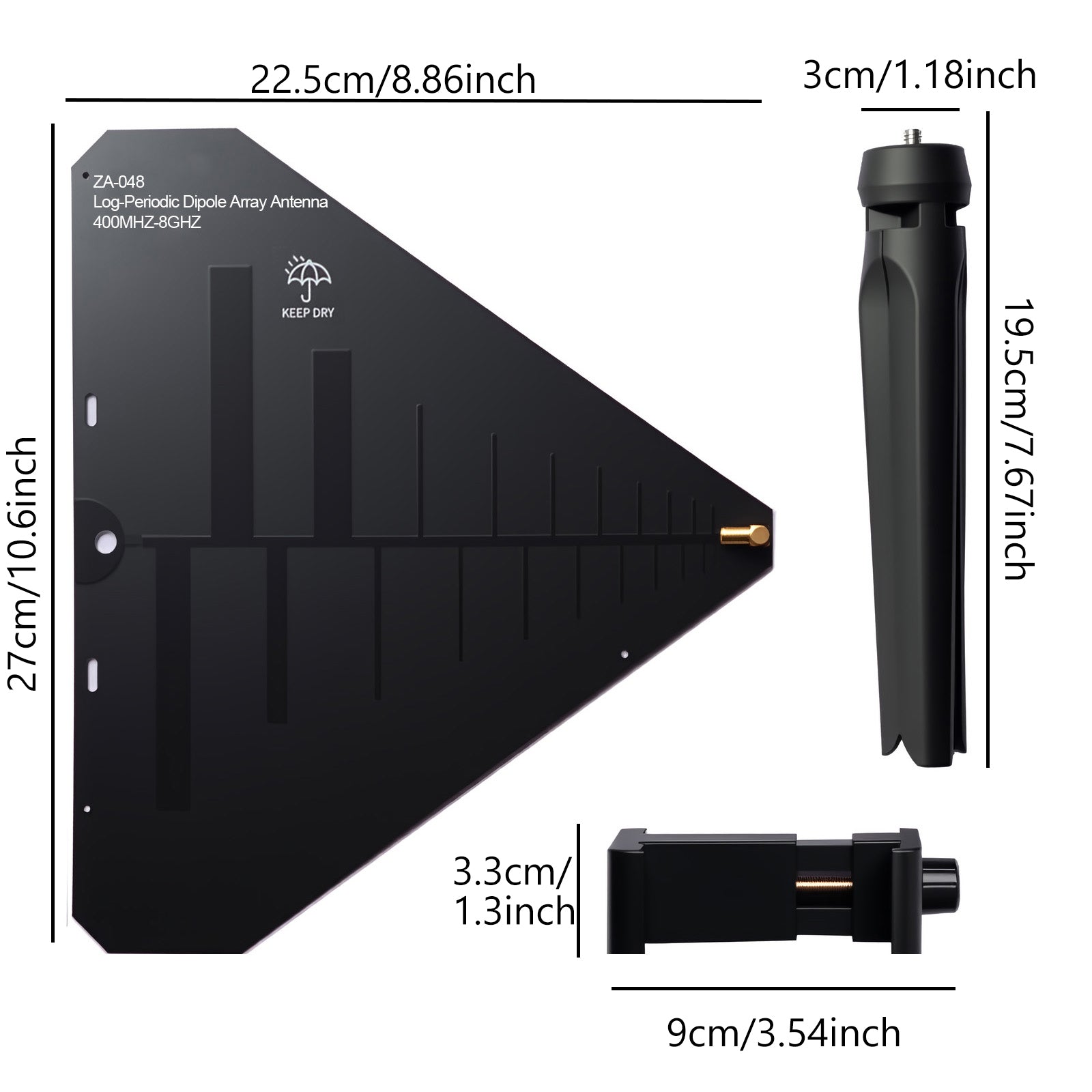

  • The ZA048 is a printed LDPA(Log-Periodic Dipole Array Antenna). Optimized design techniques significantly reduce its size, making it compatible with the tinySA ULTRA spectrum analyzer. Using new technology, it covers 400MHz - 8GHz in a 27x23cm size, with some low - frequency directionality loss

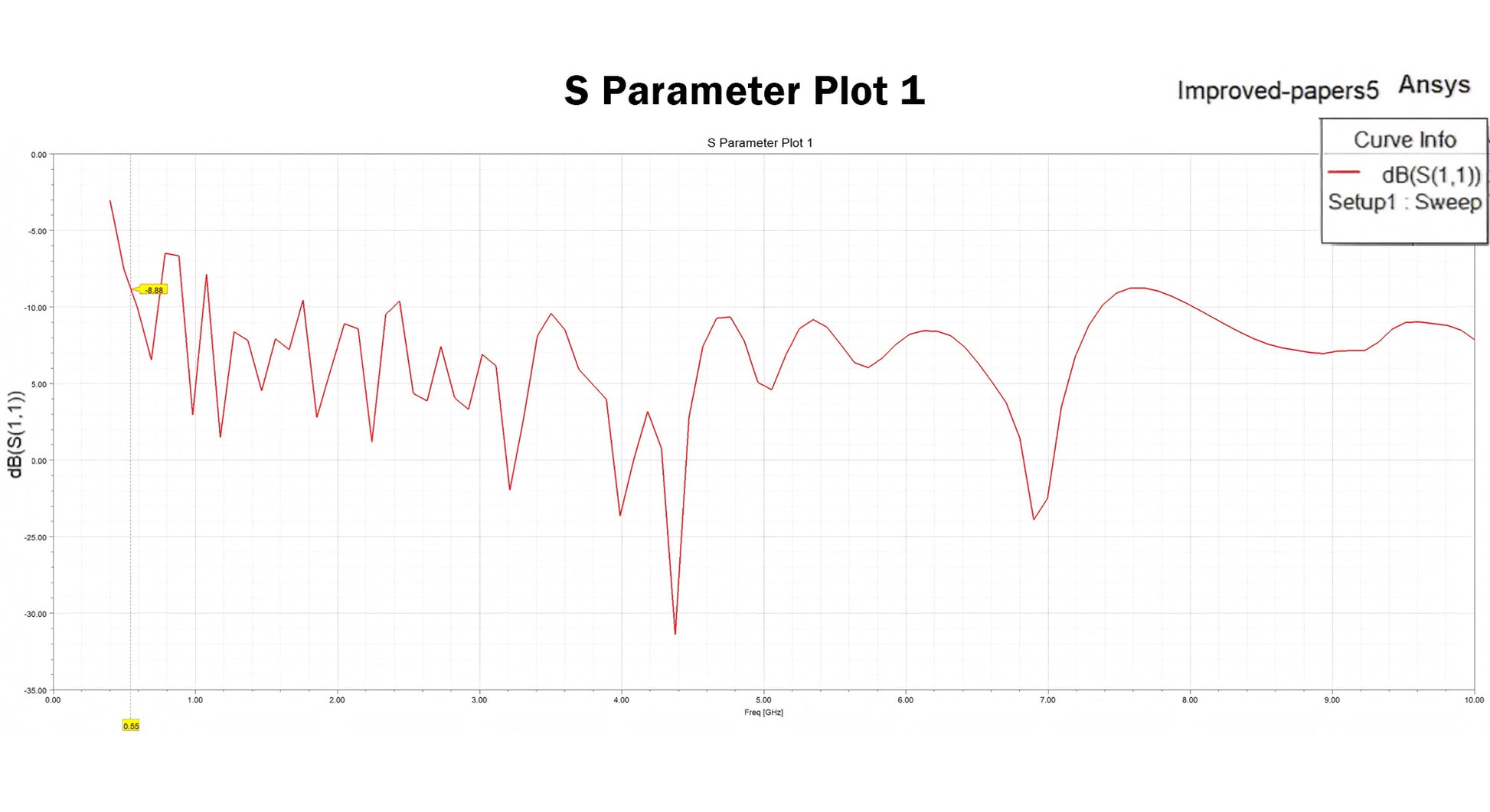

  • The antenna's input resistance is rated at 50Ω, and return loss fluctuates when the antenna is connected to a 50Ω source. In most frequency bands above 1GHz, the return loss is about 10dB or less, and the VSWR is about 2. In the 400M-1GHz band, the return loss is about 4.5dB or less, and the VSWR is about 4. The VSWR increases rapidly at frequencies below 400MHz

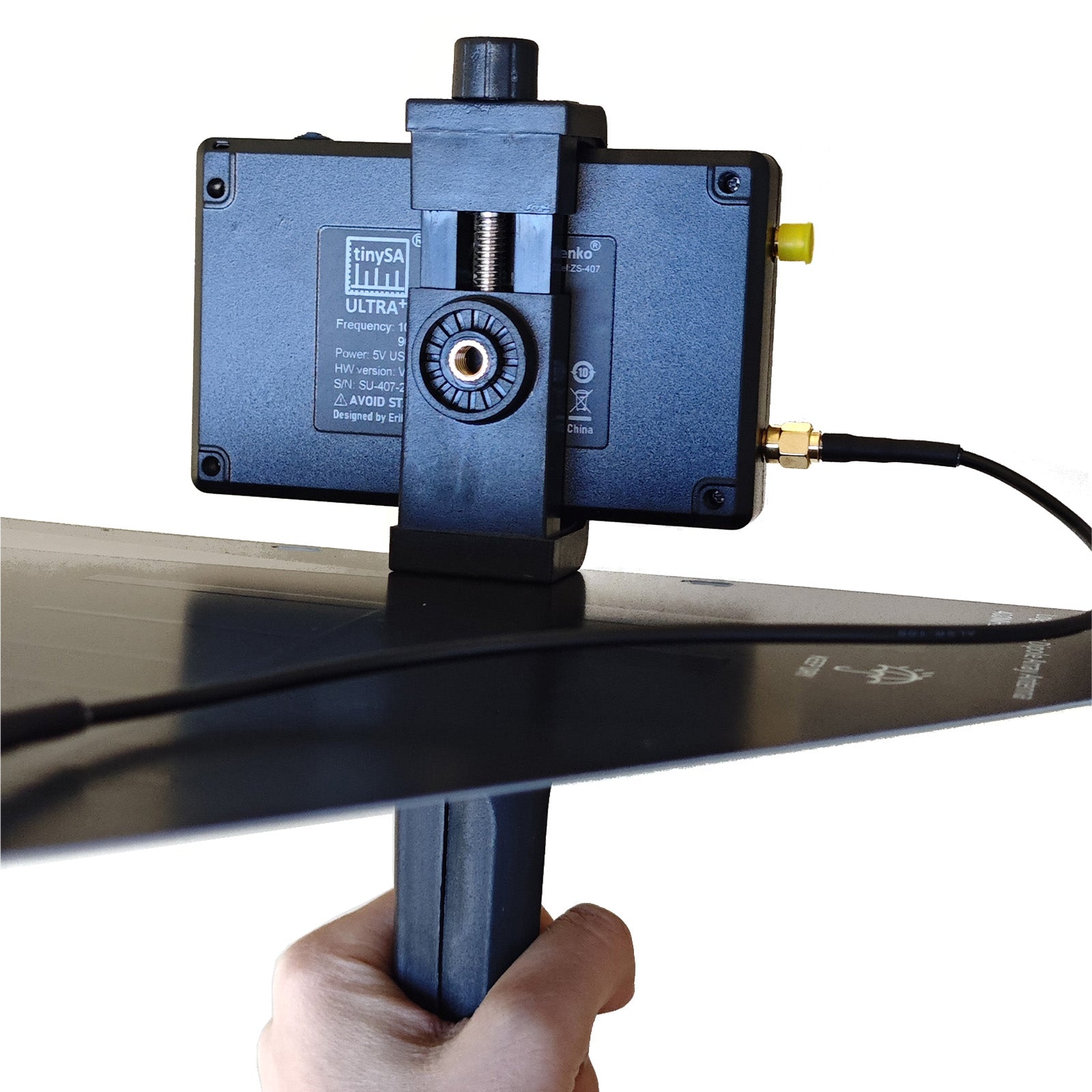

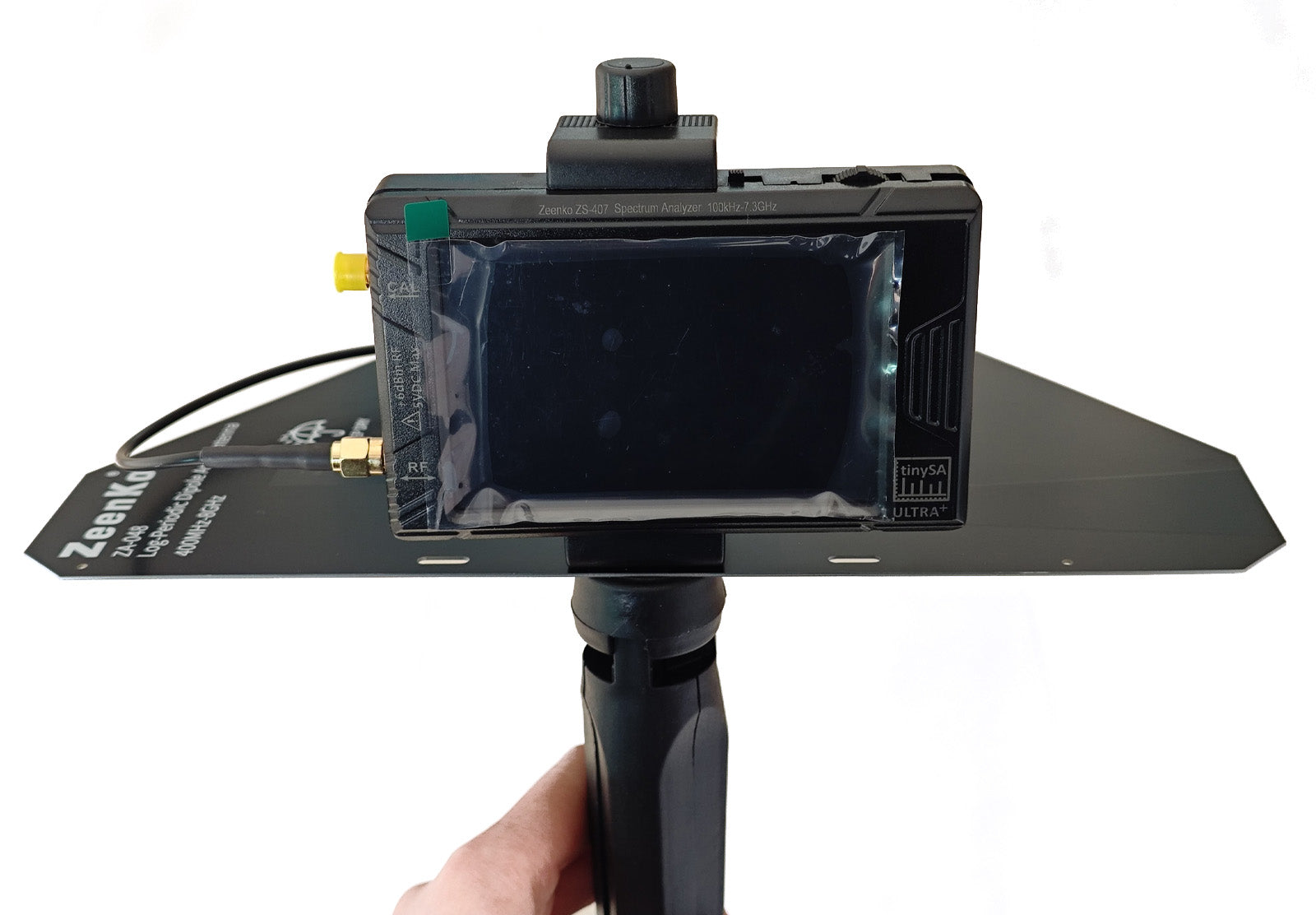

  • ZA048 log-periodic dipole array antenna can be used for radio direction finding under the frequency between 1GHz-8.5GHz without strict requirements. It exerts a decent sensitivity of direction of the signal source when being held single-handedly and changes directions along with the body

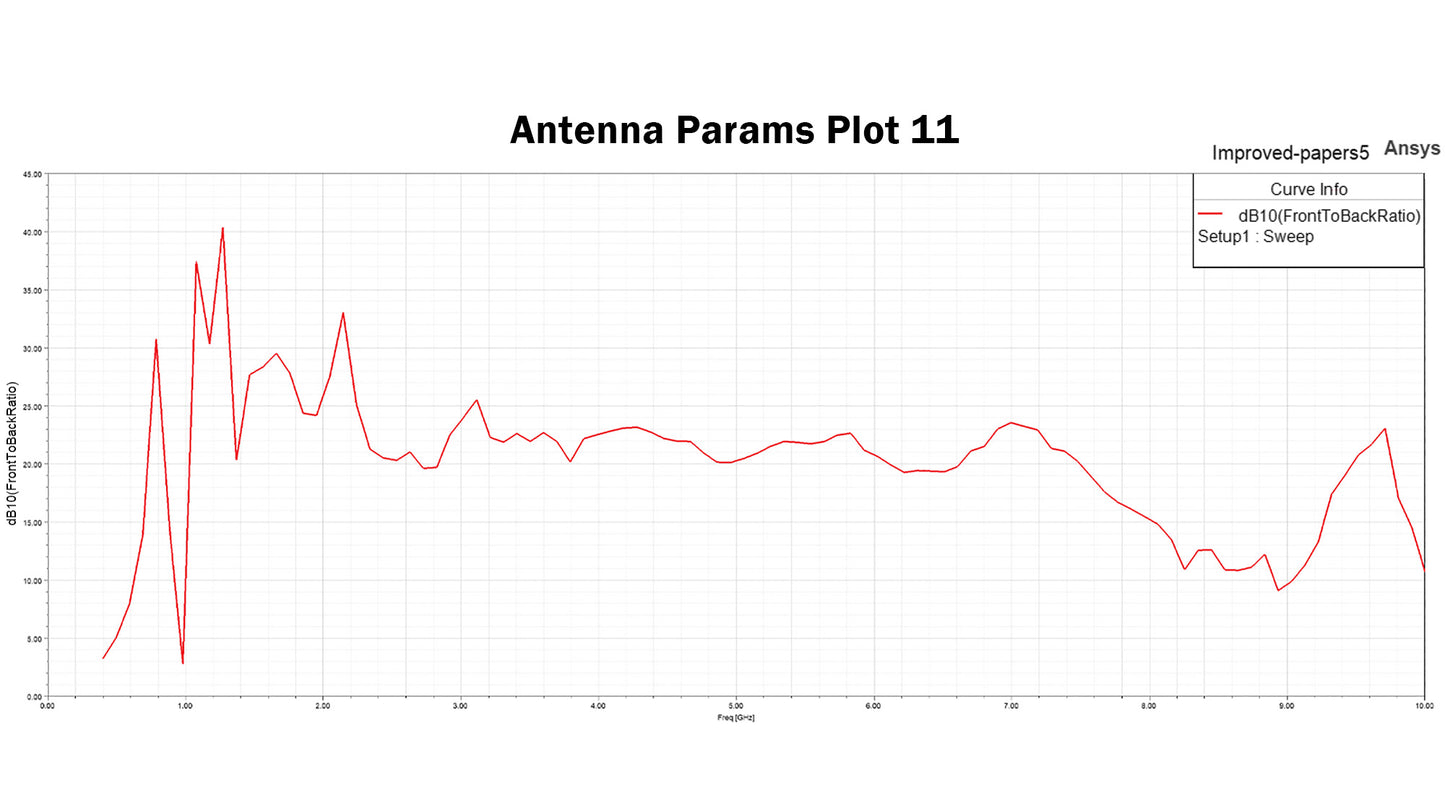

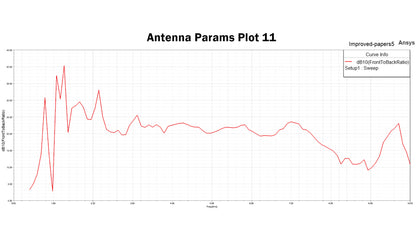

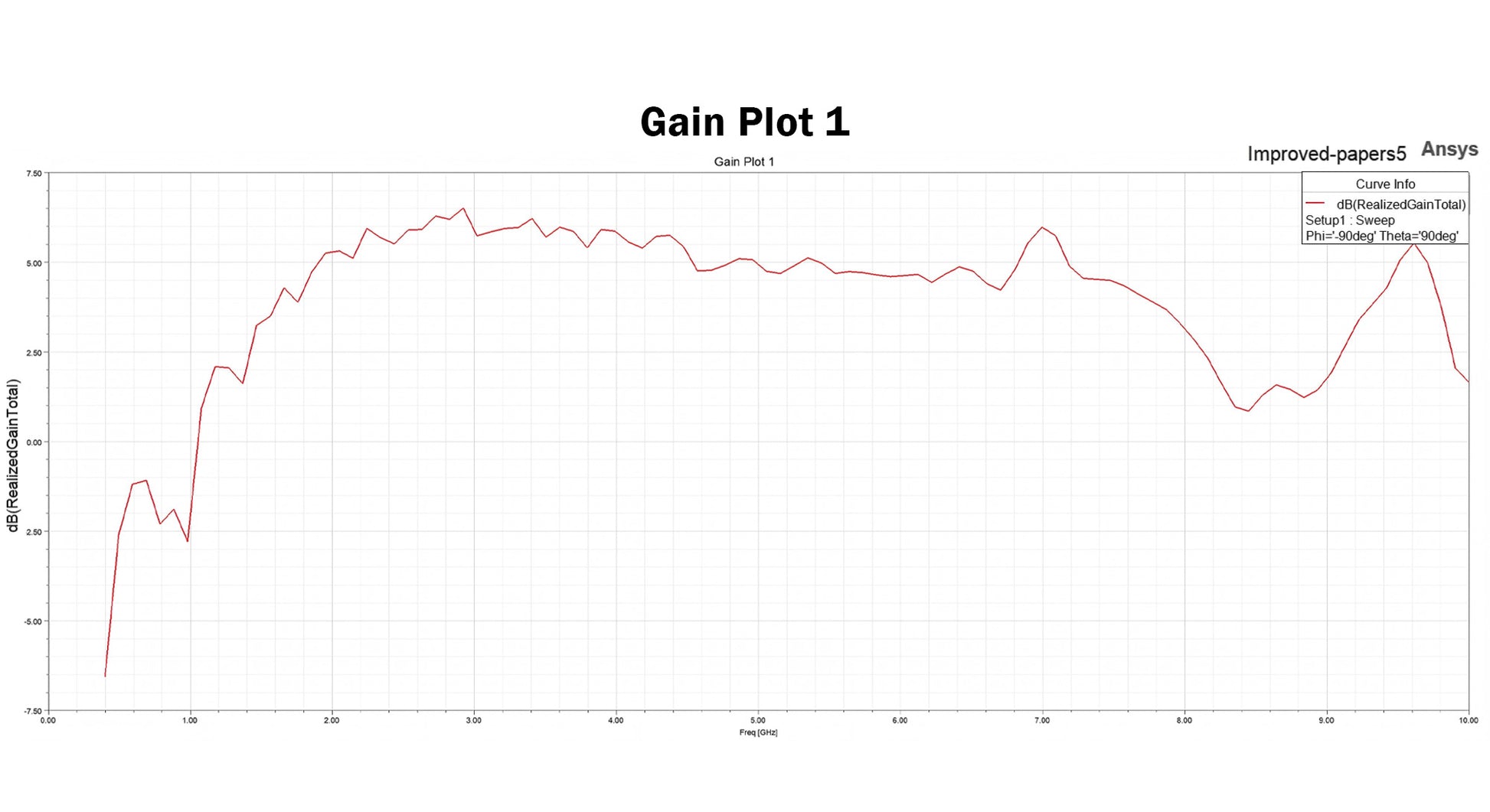

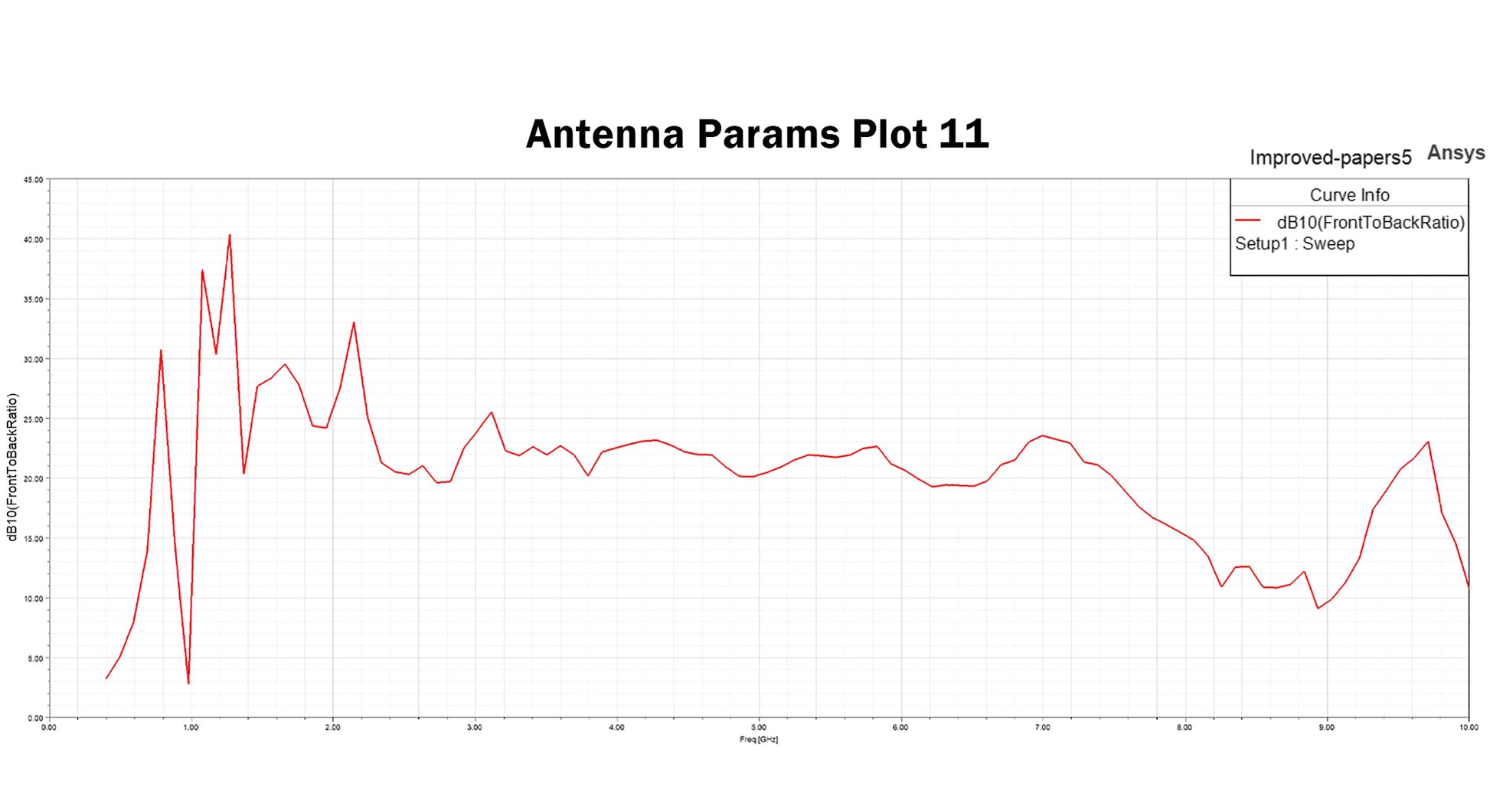

  • Due to antenna area constraints, some low - frequency directionality was sacrificed. Please refer to the gain and front-back comparison charts below

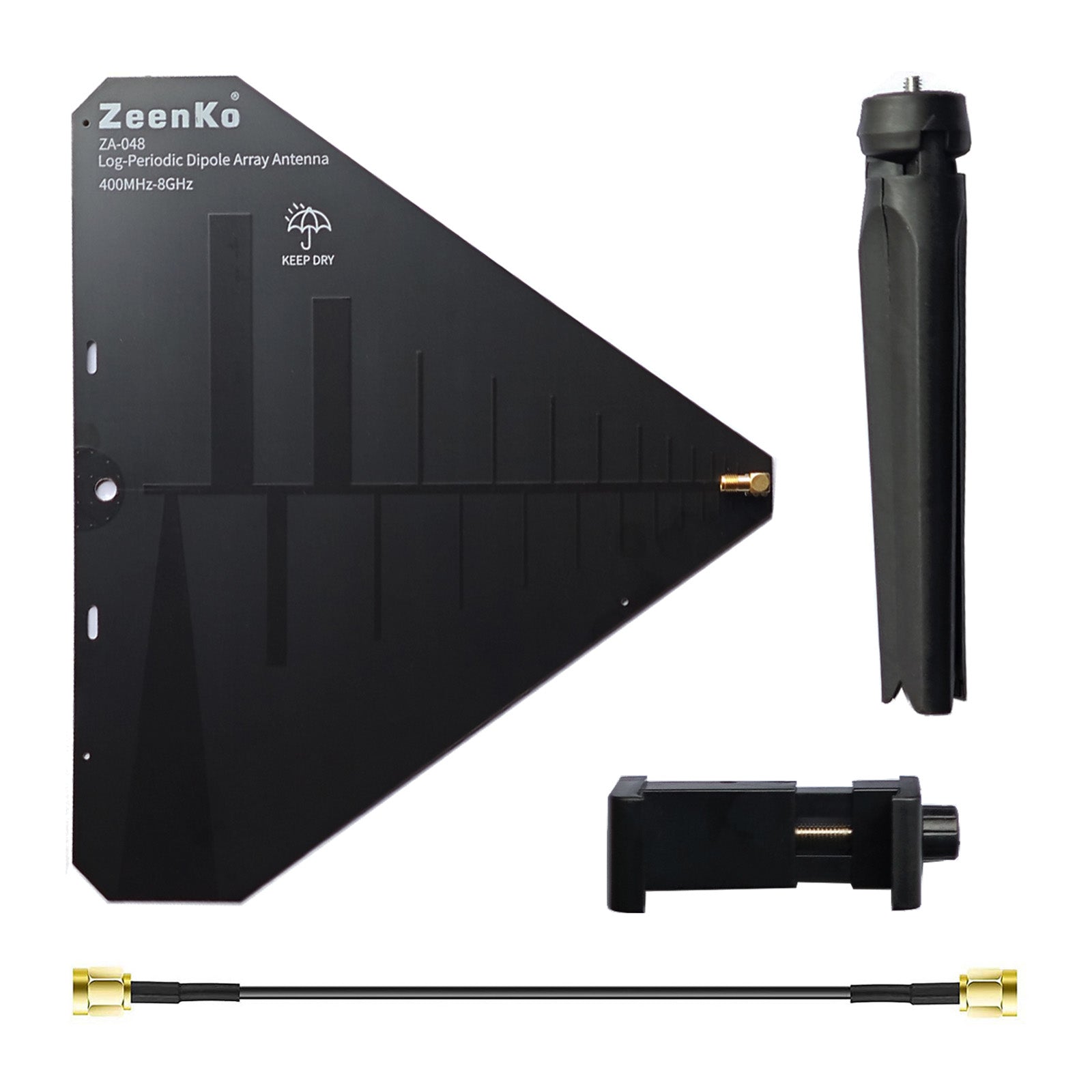

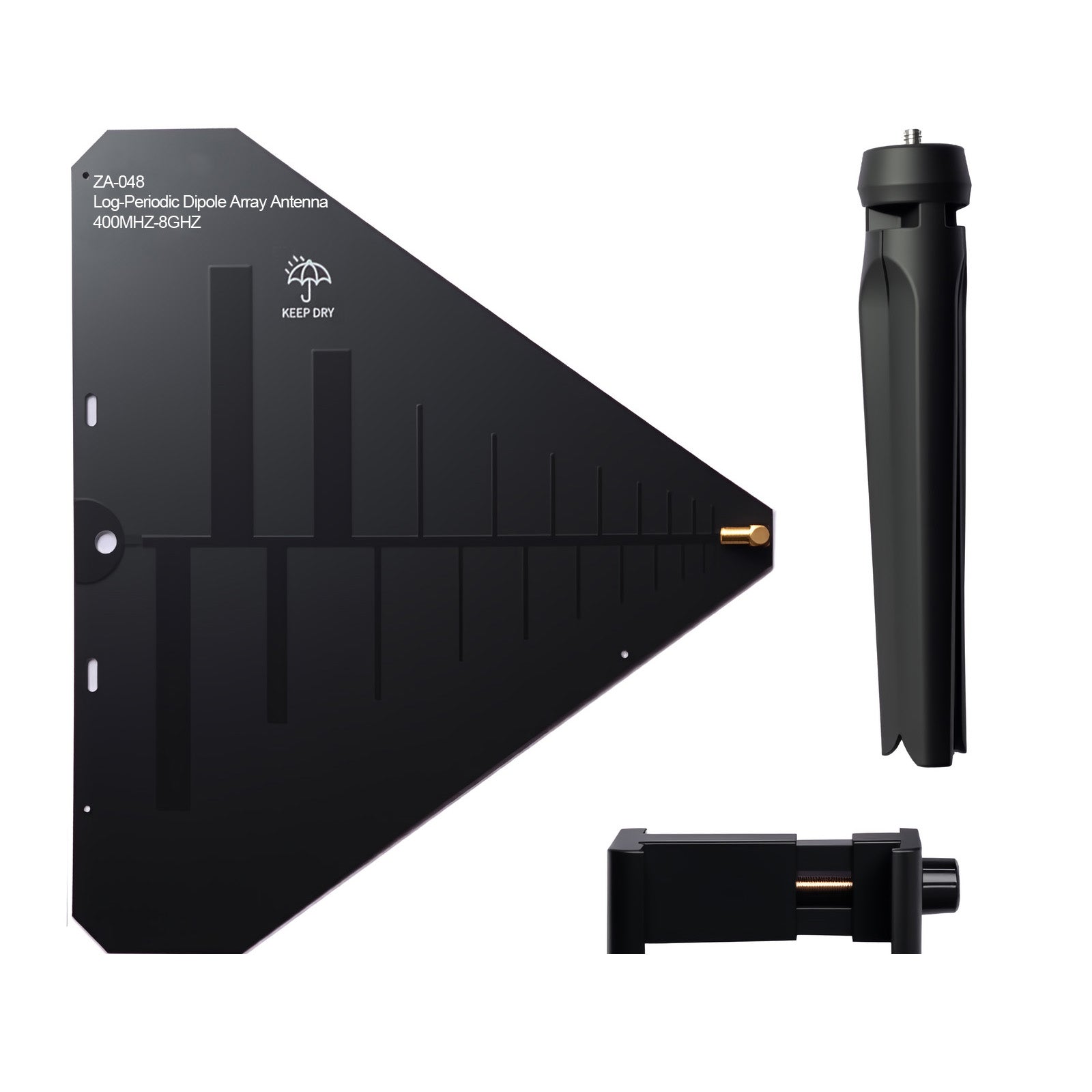

  • [Packing List] ZA-048 Log-Periodic Dipole Array Antenna 1set (Tinysa ultra NOT included)
