AURSINC NanoVNA SAA-2N V2.2 Vector Network Analyzer, 50KHz-3GHz 4" Touchscreen HF VHF UHF VNA Antenna Analyzer Ham Radio with Storage Bag, Measuring S Parameters, Duplexer, VSWR, Phase, Delay

AURSINC NanoVNA SAA-2N V2.2 Vector Network Analyzer, 50KHz-3GHz 4" Touchscreen HF VHF UHF VNA Antenna Analyzer Ham Radio with Storage Bag, Measuring S Parameters, Duplexer, VSWR, Phase, Delay

$116.99
$116.99 $116.99
Sale Sold out
Shipping calculated at checkout.

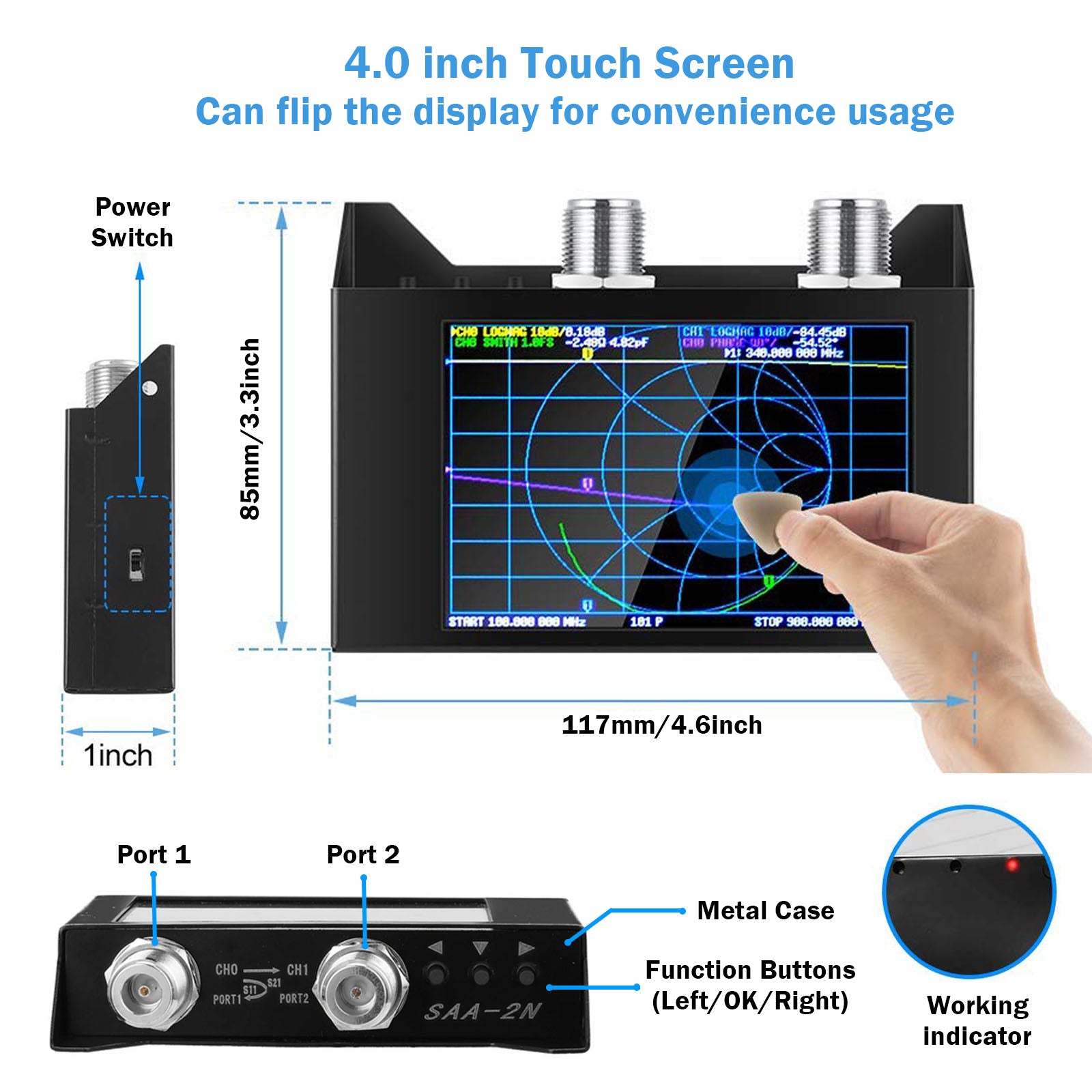

  • [Upgraded V2.2 Version] The SAA-2N is a two port T/R (transmission/reflection) VNA which can measure the S parameters S11 & S21 of a two port network, or the reflection coefficient(S11) of a one port network. The nano vna saa-2n has a 4.0 inch touch screen for easier data reading and testing. It is constructed with a durable and practical metal shell, and comes with a carrying bag for portability

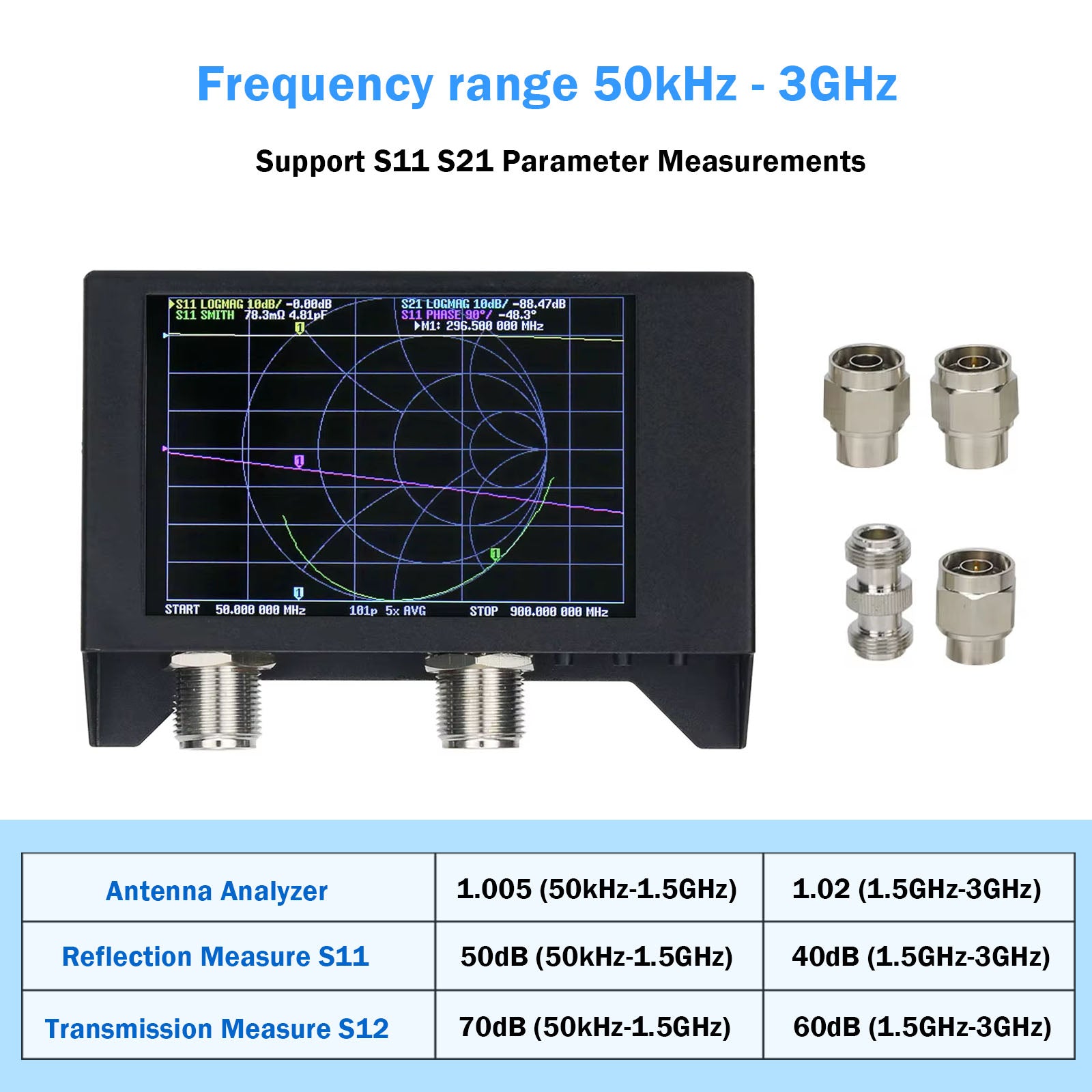

  • [Frequency range] The frequency range of the SAA-2N antenna analyzer is 50kHz to 3GHz. Transmission Mearsure S21: 70dB (50KHz-1.5GHz), 60dB (1.5GHz-3GHz); Reflection Measure S11: 50dB (50KHz-1.5GHz), 40dB (1.5GHz-3GHz); Antenna Analyzer: 1.005 (50KHz - 1.5GHz), 1.02 (1.5GHz-3GHz)

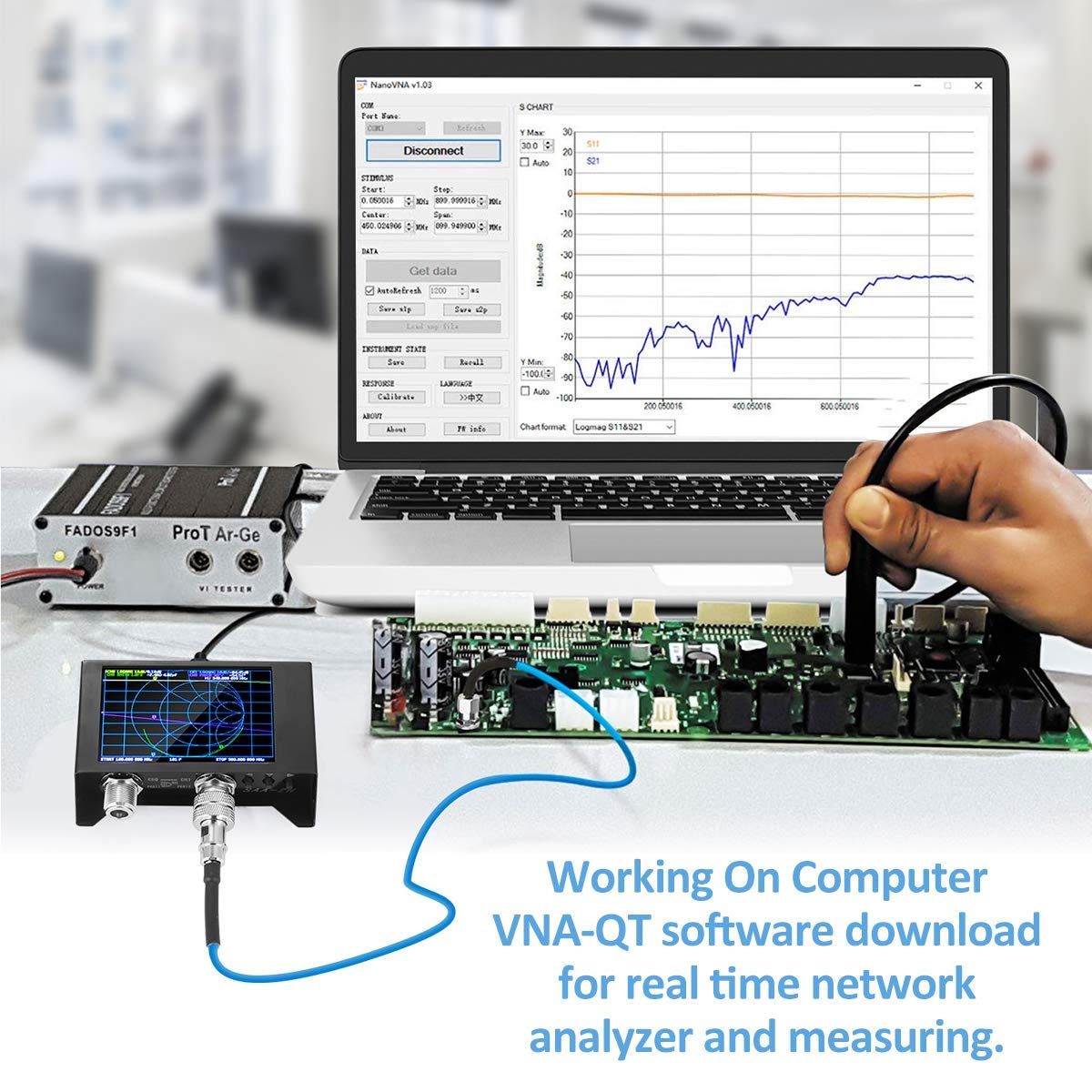

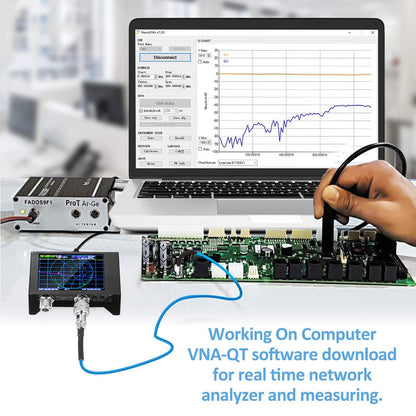

  • [PC Connection] The NanoVNA SAA-2N can be controlled by PC via VNA-QT software, supported for Linux, Windows (7+), Mac OS planned. It also support Nanovna-Saver for extracting the data for display on a computer, and for saving to Touchstore files
  • [Compliance] The NanoVNA-SAA-2N developed by Hugen, designed in collaboration with OwOComm. Under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at Development Department, in line with the original technical specifications

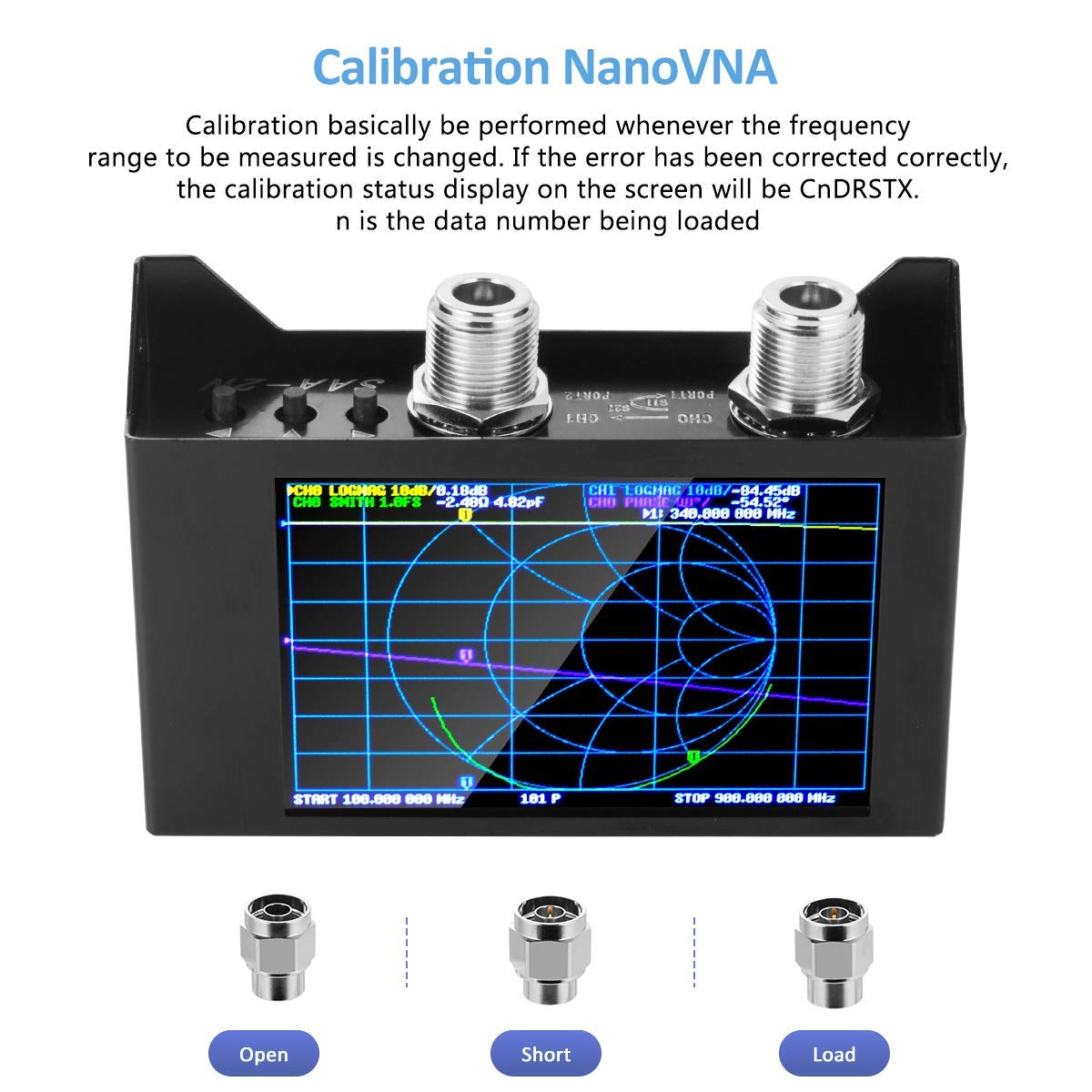

  • [Calibration] The NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture. The SAA-2N does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device

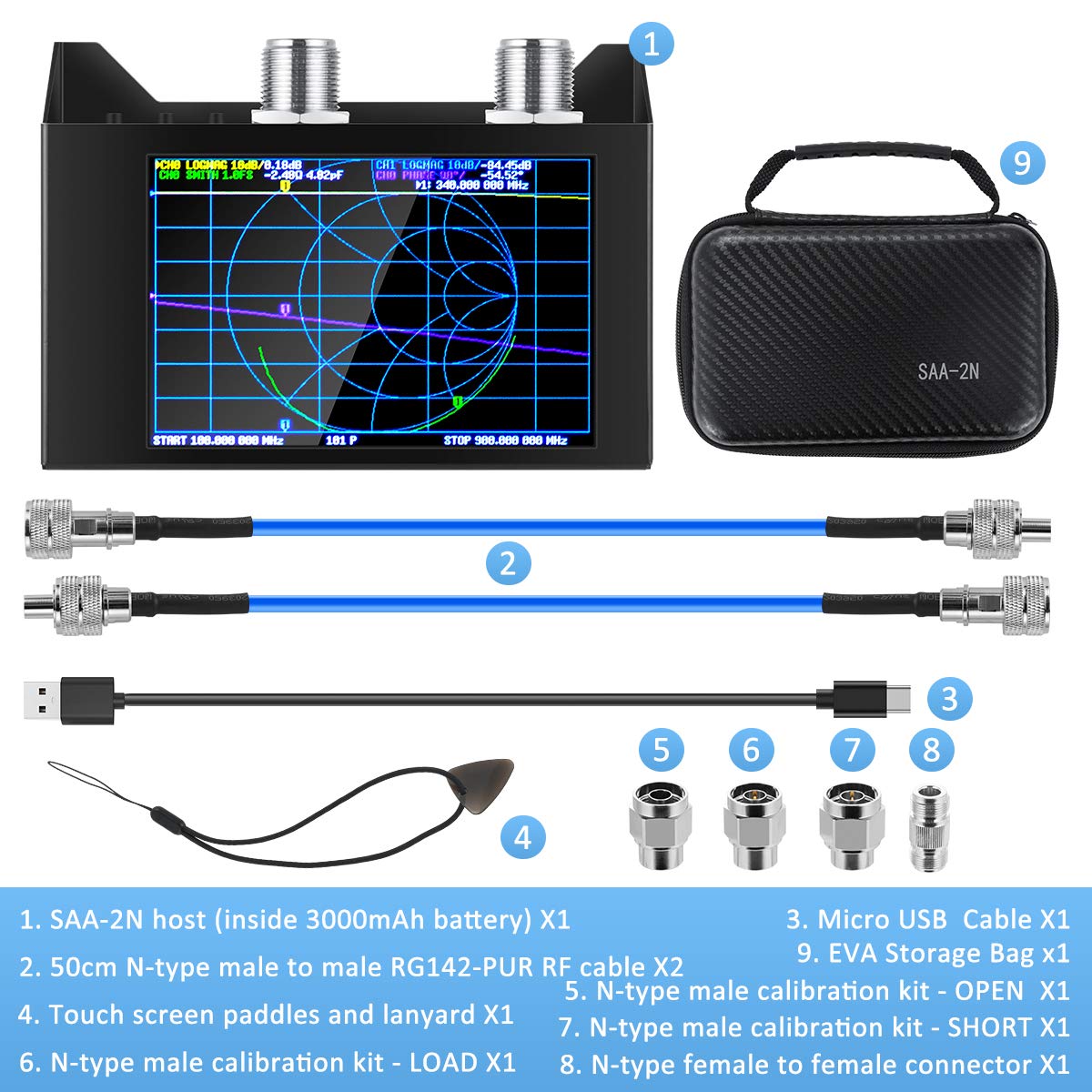

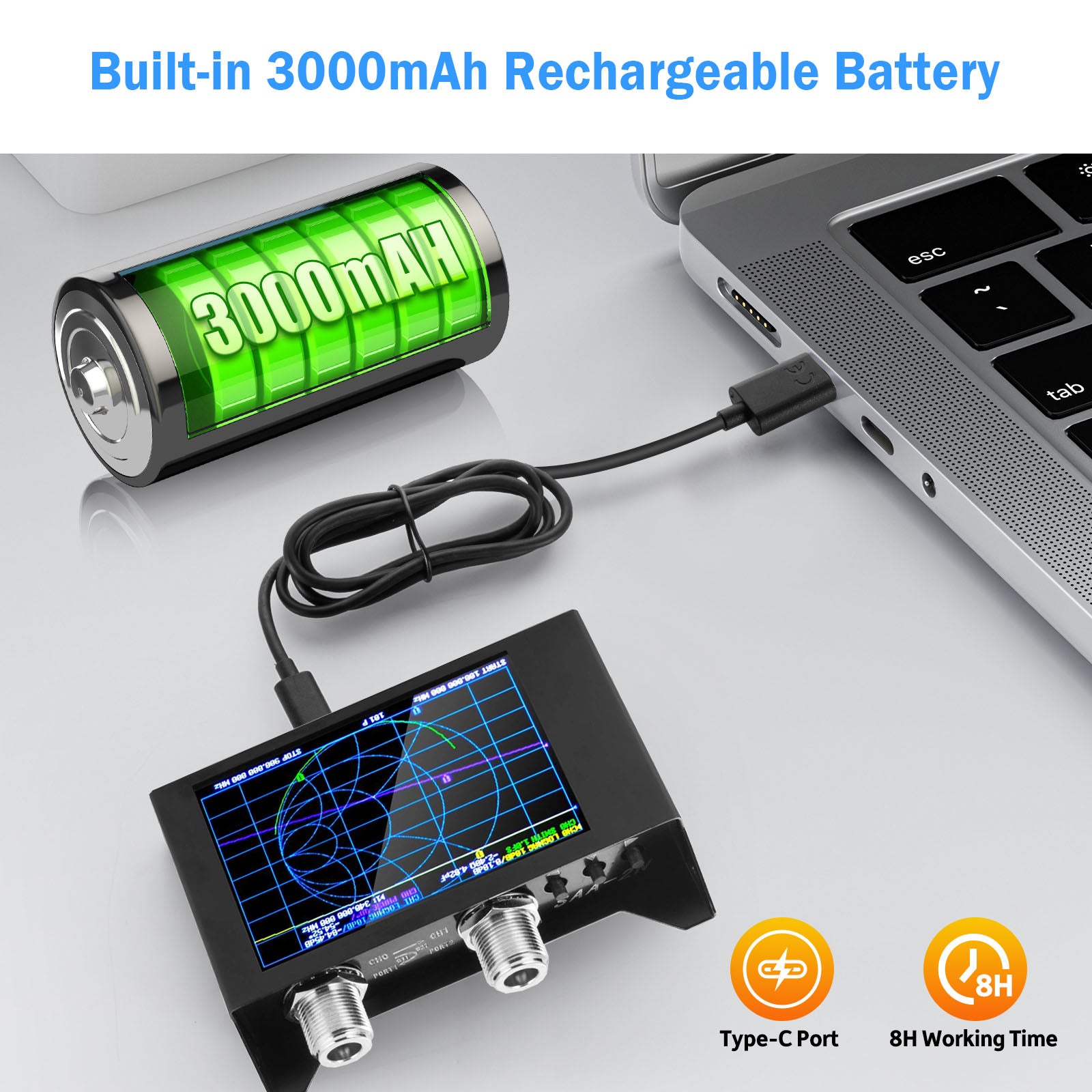

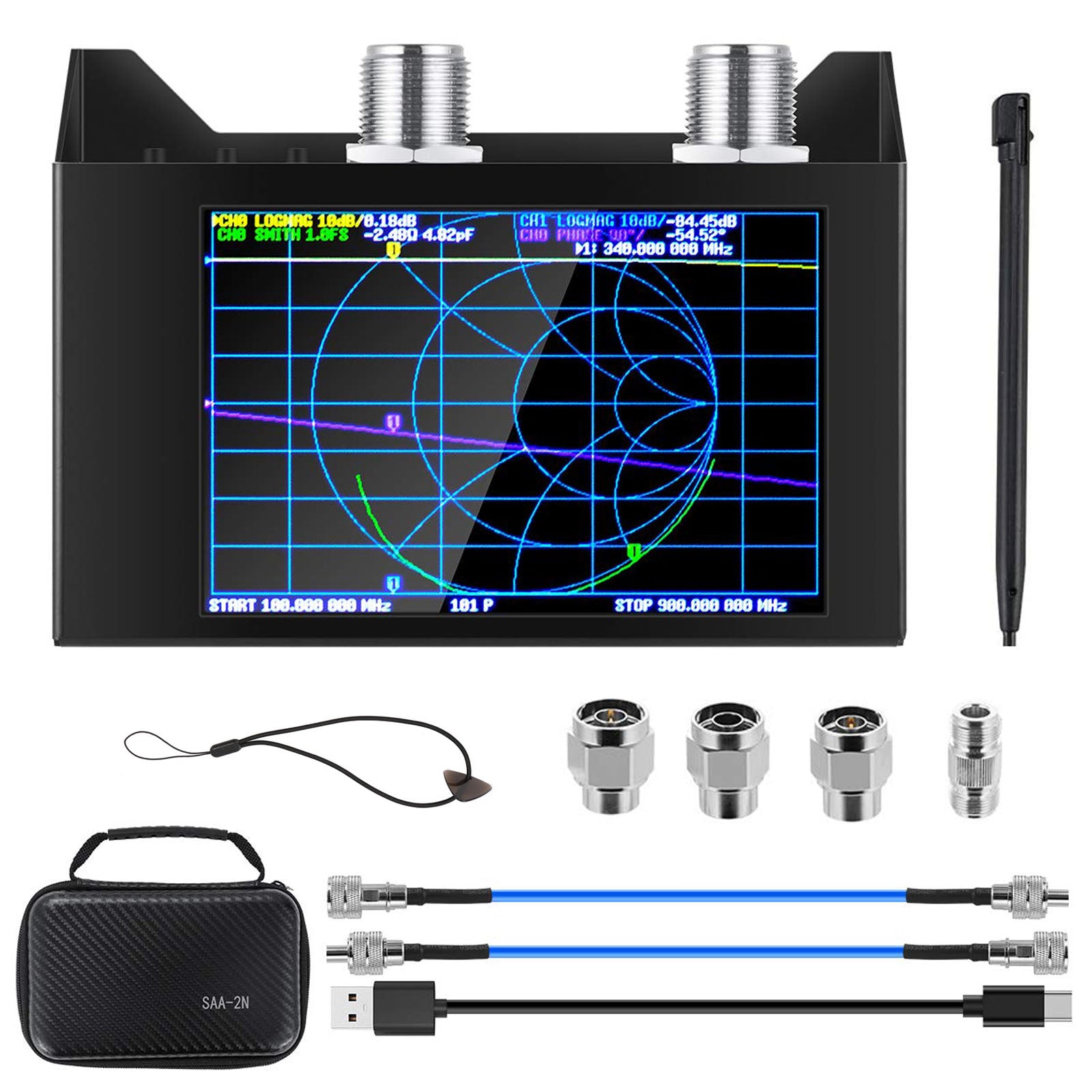

  • [Packing List] 1* NanoVNA SAA-2N Host (Metal Shell, 3000mAh lithium-ion Battery); 1* Micro USB Data Cable; 2* 50cm N-type Male to Male RG142-PUR RF Cable; 1* N-type Male Calibration Kit-OPEN; 1 * N-type Male Calibration Kit-SHORT; 1* N-type Male Calibration Kit-LOAD; 1* N-type Female to Female Connector; 1* EVA Storage Bag for carrying out; 1*Touching Screen Paddle and Lanyard
