AURSINC NanoVNA-F V2 Vector Network Analyzer 4.3inch 50KHz-3GHz HF VHF UHF Antenna Analyzer Ham Radio, 5000mAh Battery, Measuring S-Parameters Voltage Standing Wave Ratio Phase Delay Smith Chart

AURSINC NanoVNA-F V2 Vector Network Analyzer 4.3inch 50KHz-3GHz HF VHF UHF Antenna Analyzer Ham Radio, 5000mAh Battery, Measuring S-Parameters Voltage Standing Wave Ratio Phase Delay Smith Chart

$139.99
$139.99 $139.99
Sale Sold out
Shipping calculated at checkout.

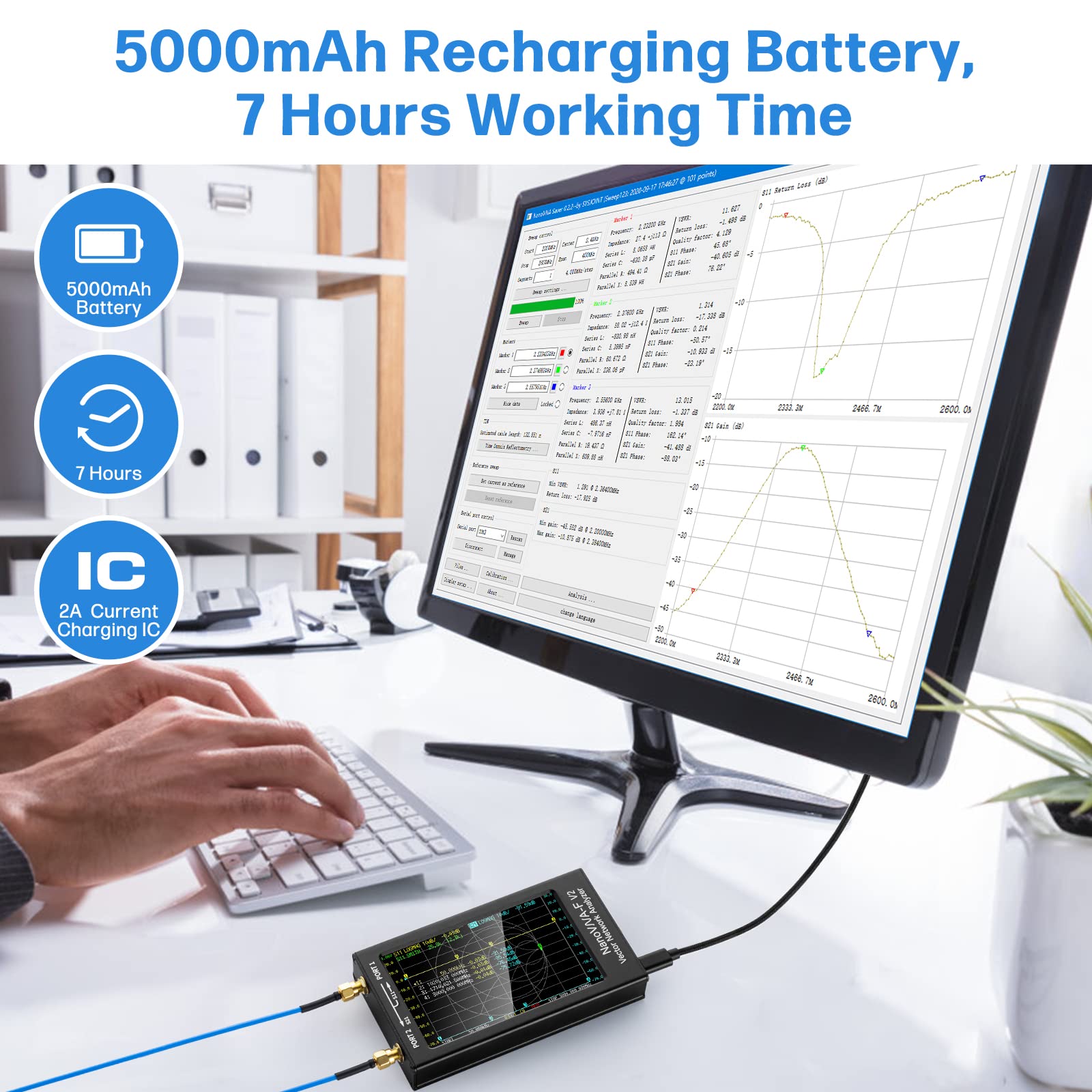

  • [Upgraded Version] The NanoVNA-F V2 with latest Firmware V0.4.0, the operation page is compatible with Nanovna-F. This antenna analyzer features a 4.3-inch IPS LCD display (800*480) and a resistive touch screen, providing a wide viewing angle and minimizing eye strain during prolonged usage. It is equipped with an 5000mAh lithium battery for longer standby time, up to 7 hours of usage

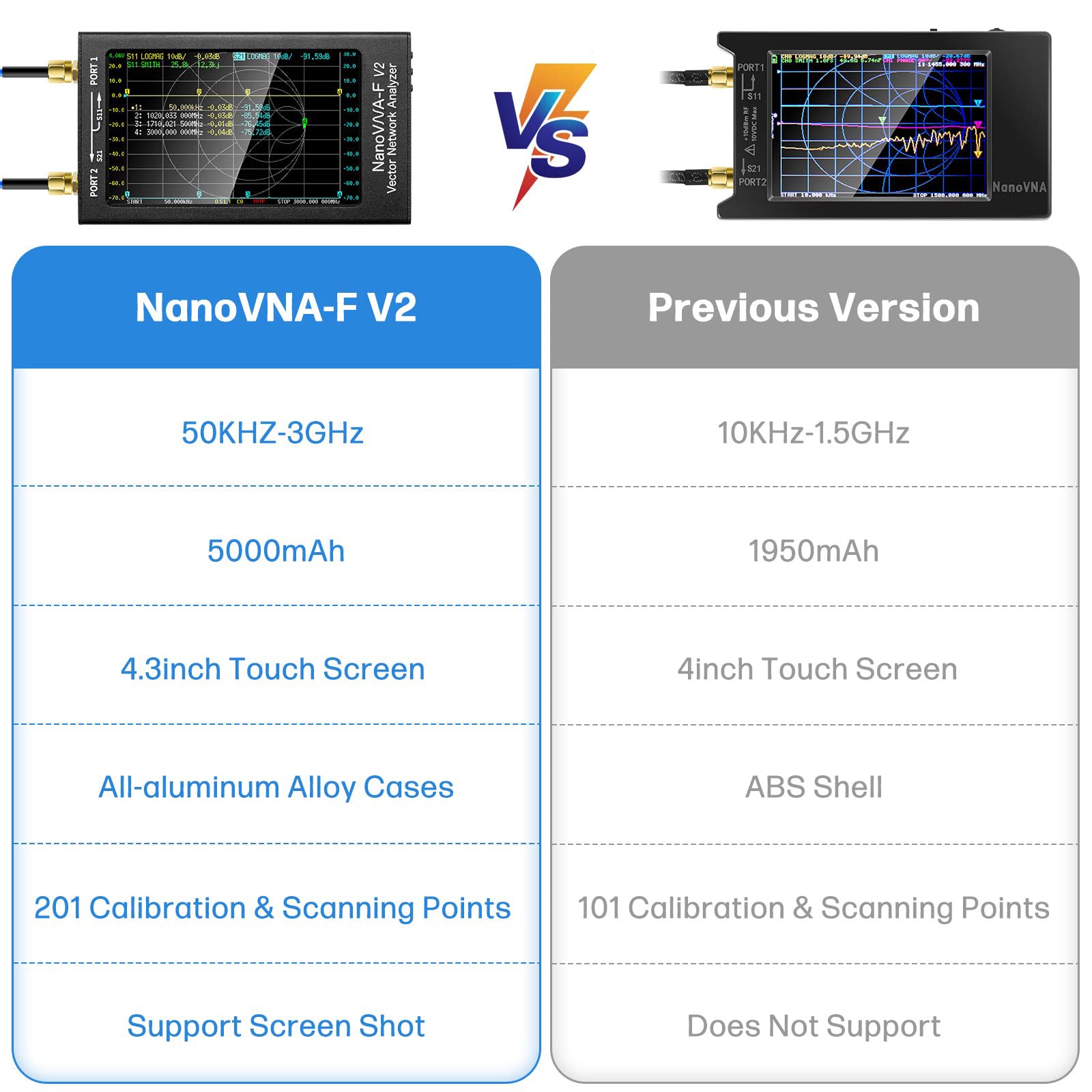

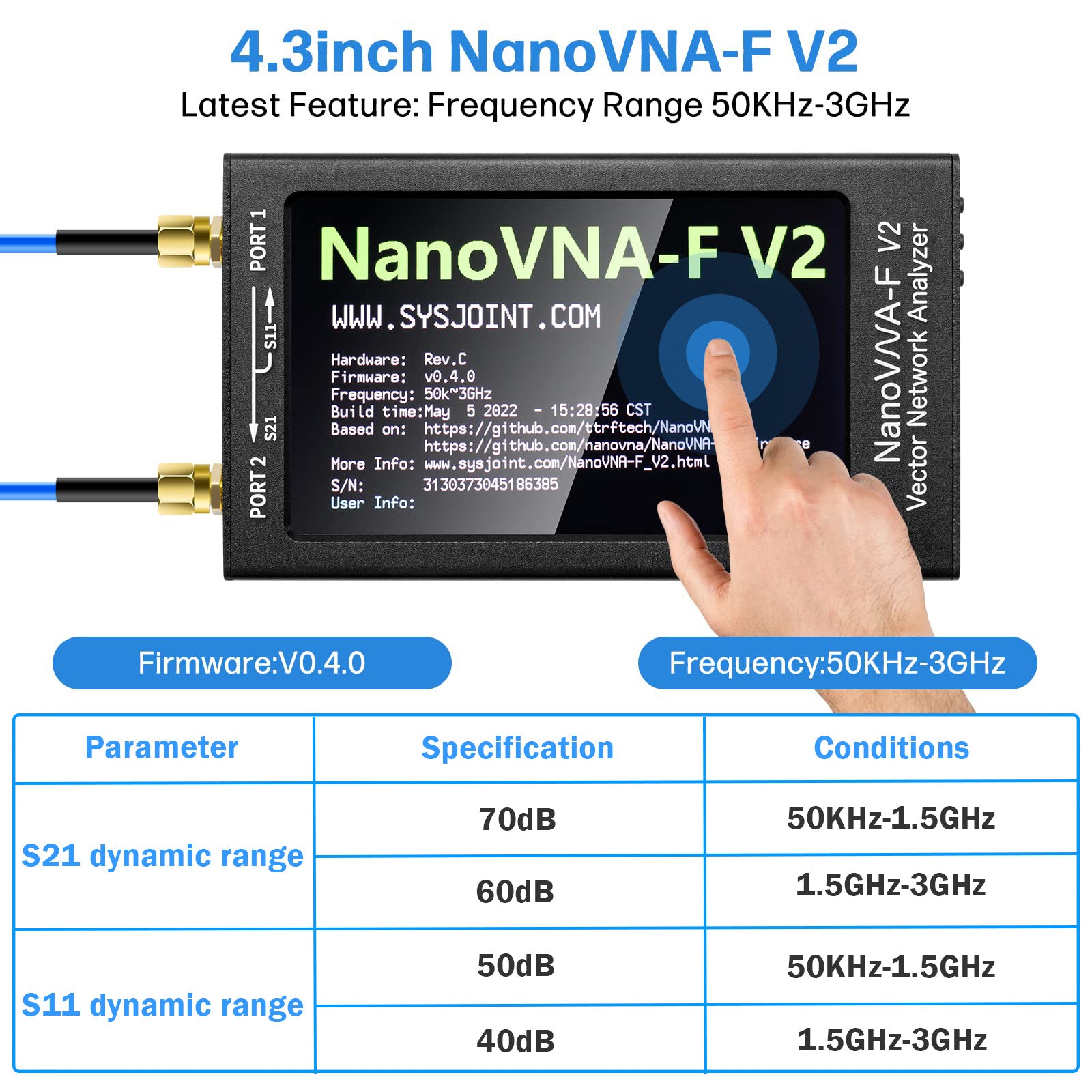

  • [Improved Frequency Range] The measurement range of NanoVNA-F V2 is 50KHz-3GHz, which is larger than the previous version (the previous one is 10KHz-1.5GHz). TX/RX method can measure full S11 and S21 parameters, S21 dynamic ranges: 70 dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50 dB (1.5GHz), 40 dB (3GHz)
  • [Compact and Powerful] The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02). It enables measurements of S-parameter, voltage standing wave ratio (SWR), phase map, group delay, Smith chart, DELAY, POLAR, LINEAR and more

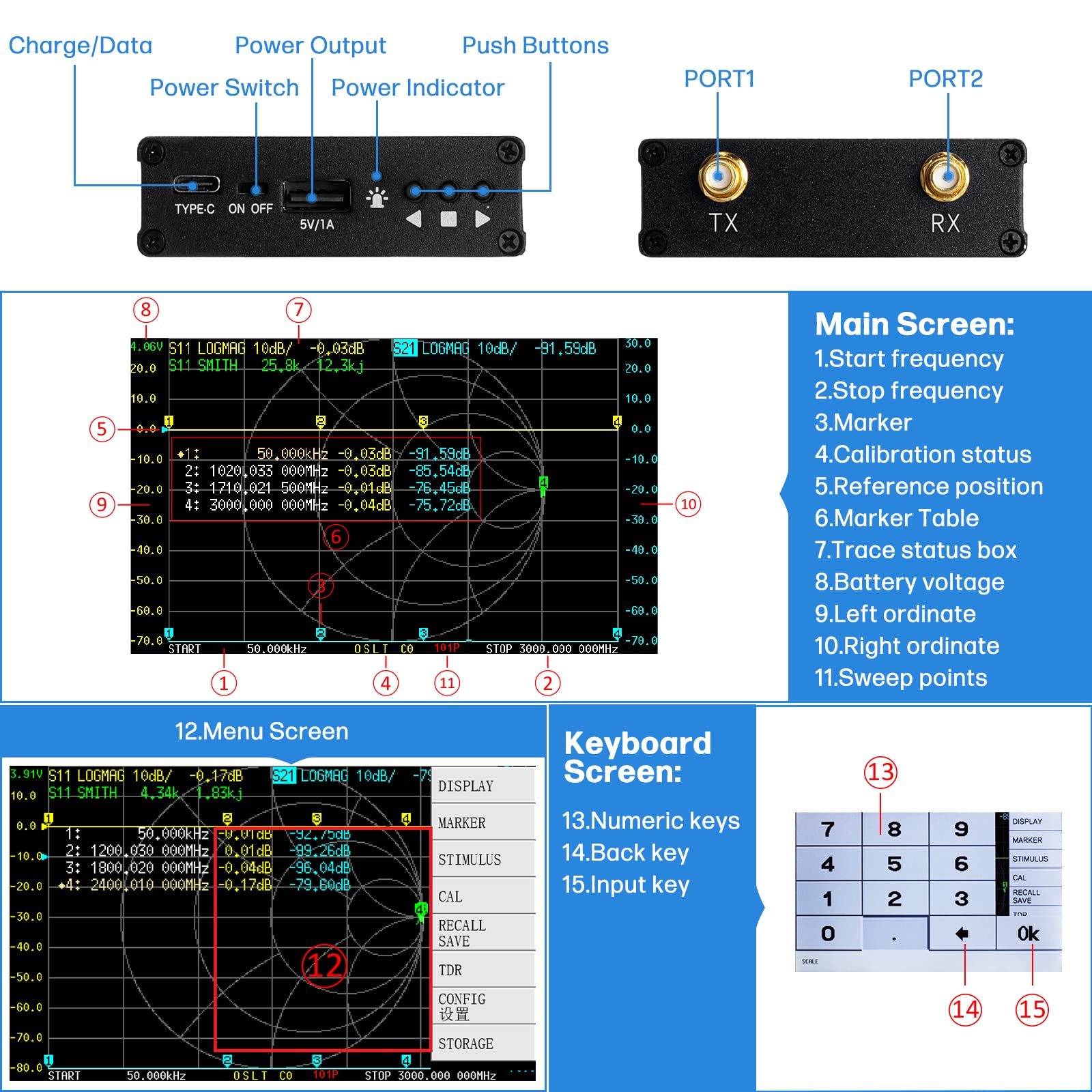

  • [Design of Aluminum Cases] Rugged and durable aluminum alloy cases, shielding electromagnetic interference to ensure precise measurements. The SMA radio frequency interface enables seamless connectivity with various measurement devices. The device has a full touchscreen and three side buttons, making it easy and flexible to use

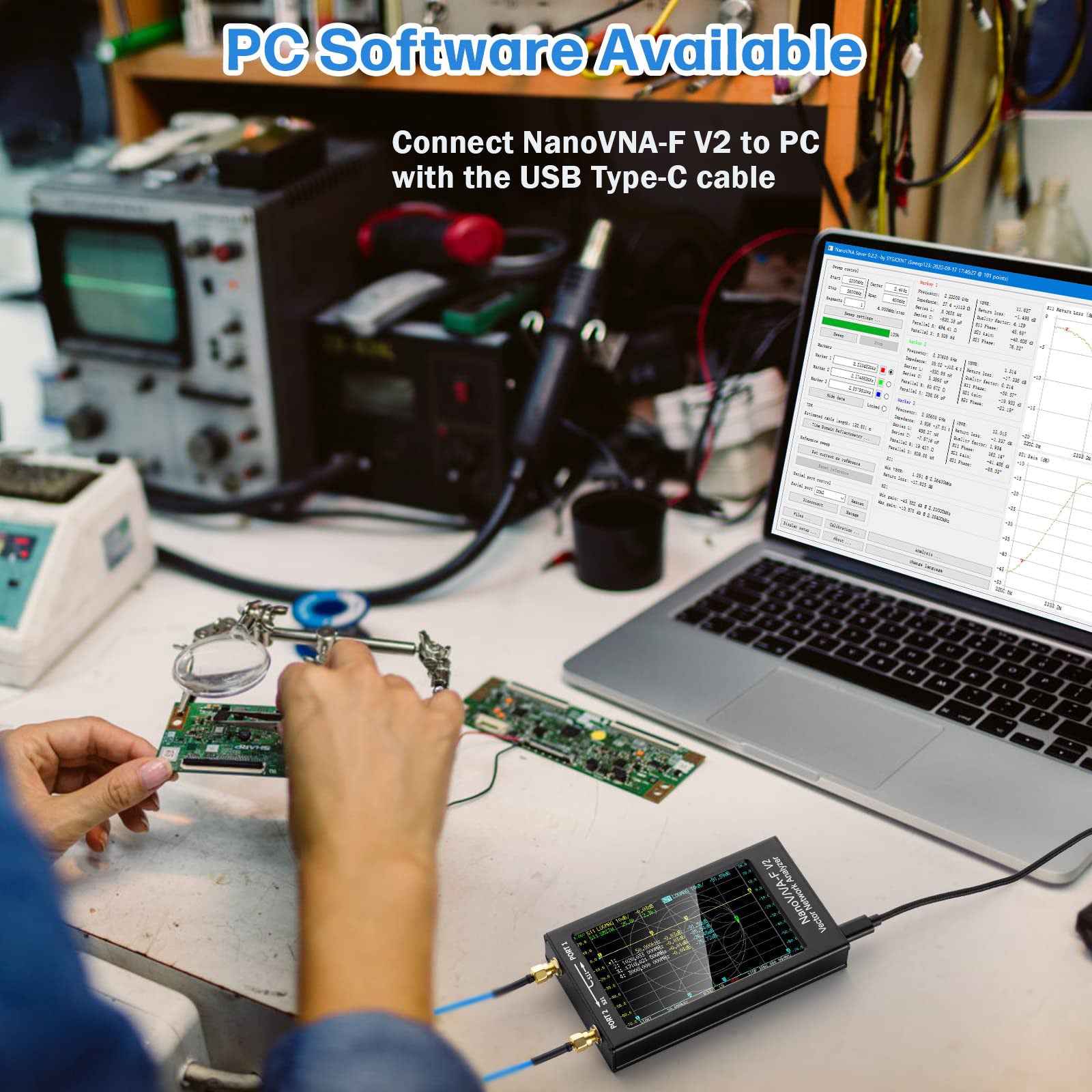

  • [PC Software Control Available] Using PC software NanoVNA Saver, it can connect to the NanoVNA, extracts data for display and save data in Touchstone files. The PC software enables us to export Touchstone (snp) files for various radio design and simulation software. For Win10 system, do not need to install the driver; for Win8 and earlier versions of the Windows system, need to install the driver: https://www. st.com/en/ development-tools/stsw-stm32102.html

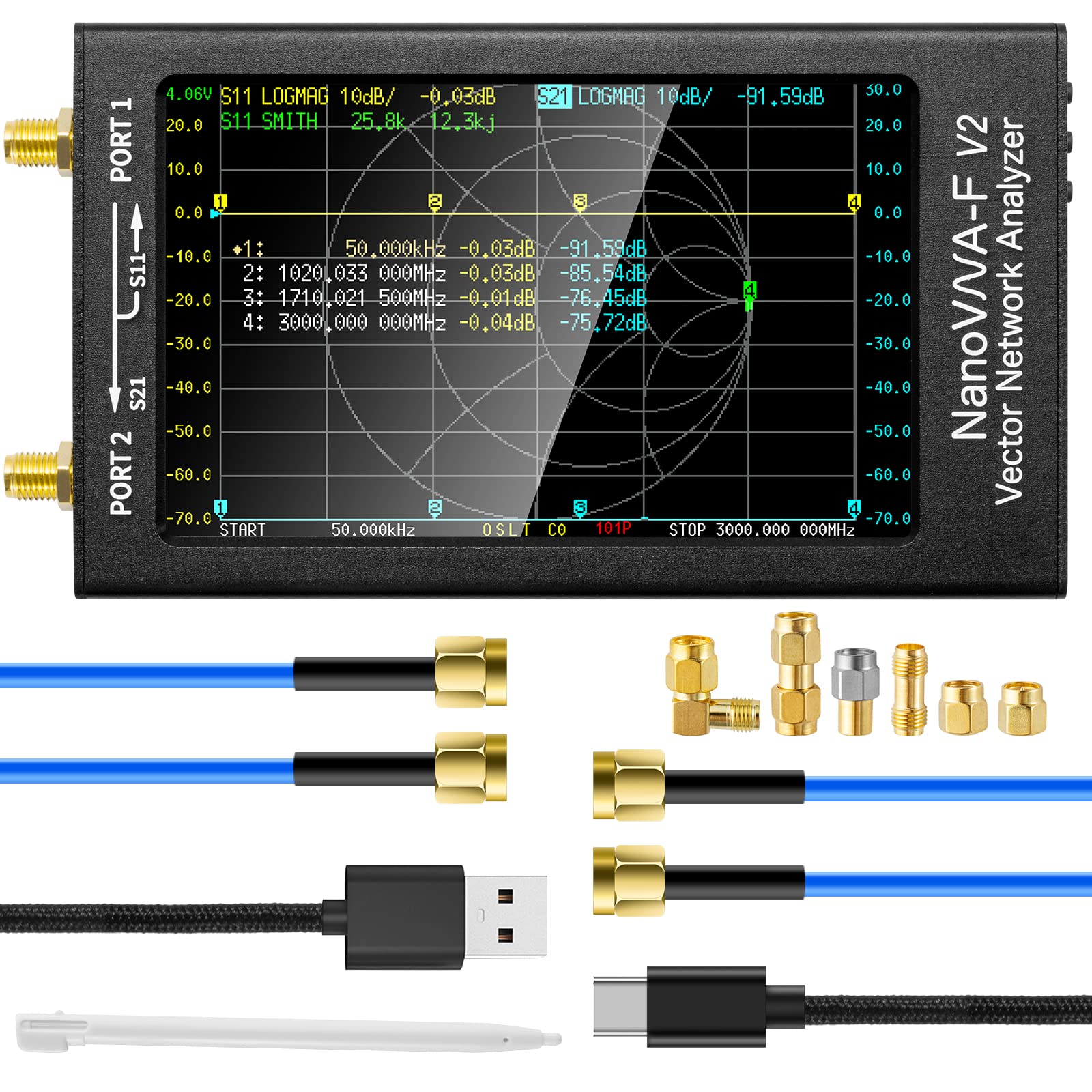

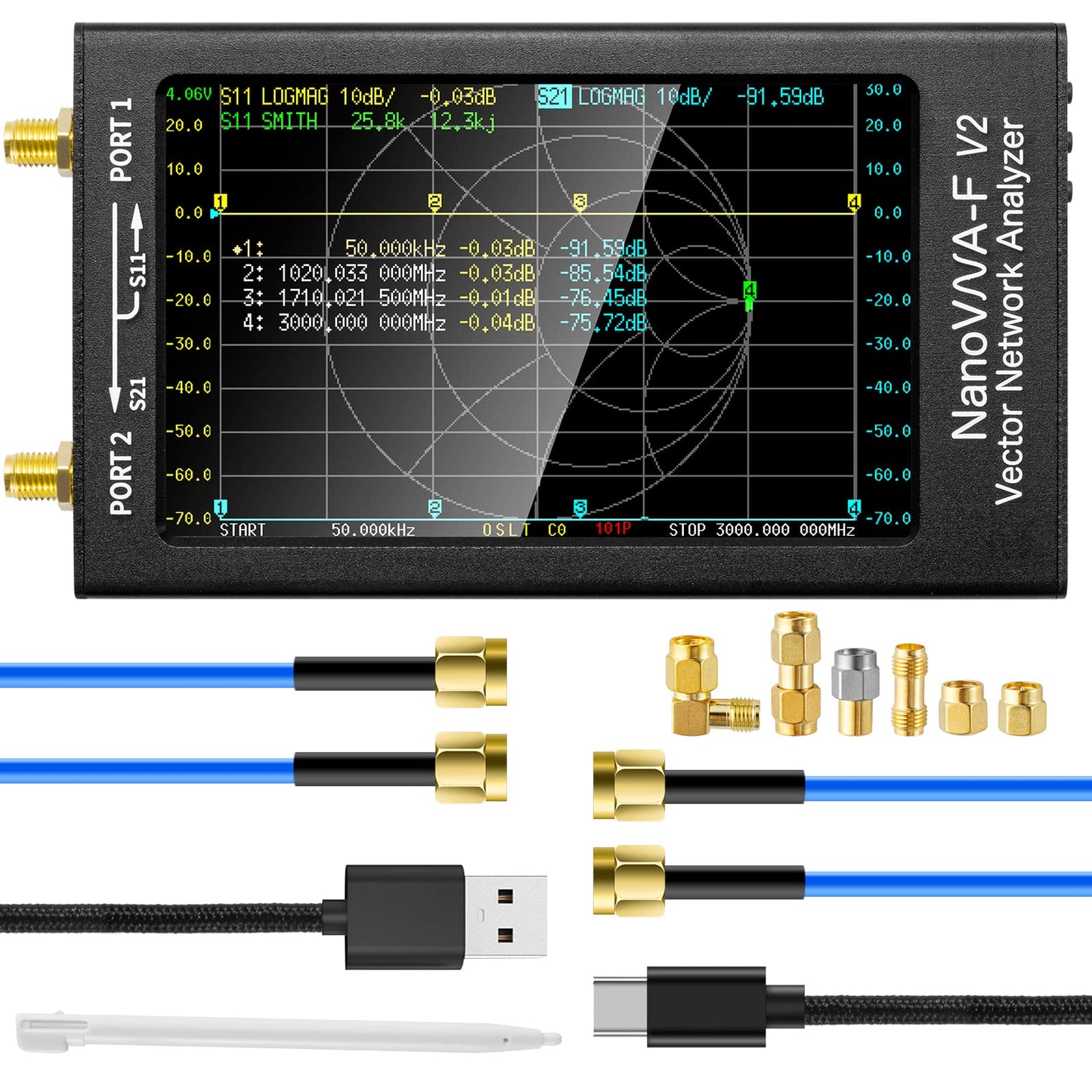

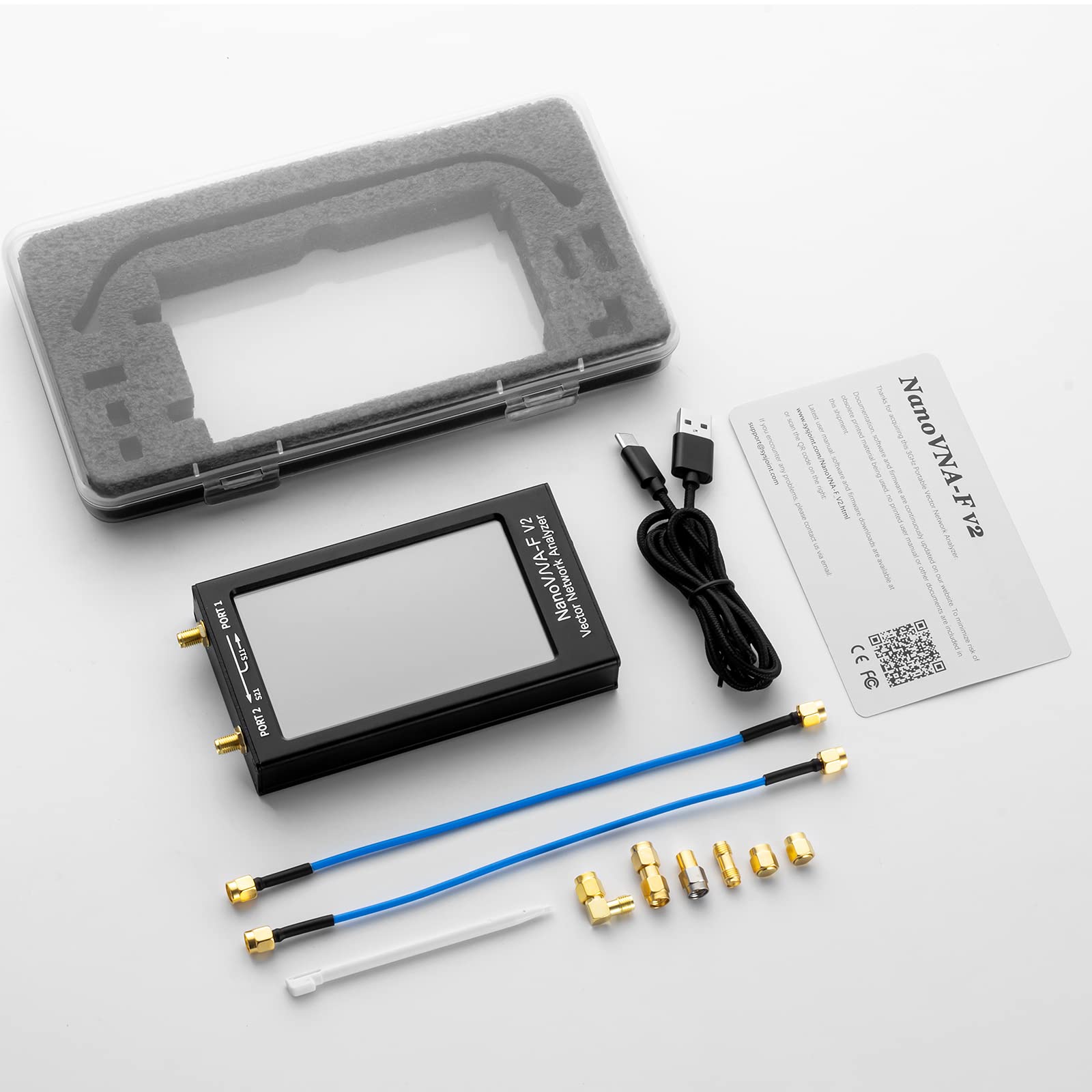

  • [Packing List] 1x Nanovna f v2 Host, 1x SMA Open Calibration Kit, 1x SMA Short-circuit Calibration Kit, 1x SMA 50Ω Load Calibration Kit, 1x SMA-KK Double-Head Female Hole Adapter, 1x SMA-JJ Double-Head Male Pin Adapter, 1x SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter, 2x 20cm SMA-JJ RG405 RF Cable, 1x USB Type-C Data Cable, 1x Stylus
