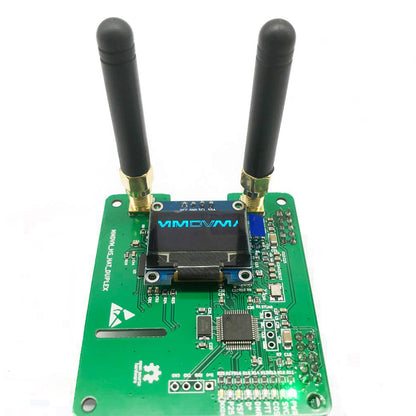

AURSINC MMDVM Duplex Hotspot Module Dual Hat V1.5.2 with 0.96 OLED Display Support P25 DMR YSF NXDN DMR Slot 1 + Slot 2 for Raspberry Pi, Pi Zero (with OLED)
[Extensive Compatibility] Supports DMR, P-25, D-Star and System Fusion. HIGH PERFORMACE: 32-bit ARM processor, up to 10mW RF power, fully tested every piece. Compatible with the Raspberry Pi, including the Pi 1, 2/2b, 3/3b/3b+, 4/4b, Pi Zero, Pi Zero 2W
[Easy to Assemble] The firmware is pre-loaded and is easily upgraded via software. Onboard LEDs showing status (Tx, Rx, PTT, Mode). Pi-star control Mode selection: DUPLEX Mode/SIMPLE Mode
[Frequency Range] UHF 433-900MHz, VHF144-146MHz. (144-148, 219-225, 420-475 Main band, 842-950) It's best to work on the amateur band: 430-440 MHz. NOTE: TX=0, RX=0. To leave the screen on all the time In Pi-Star configuration, ensure you have "OLED Type 3" in the display type field at the top of the page, set Port to: modem
[Setting] Modify the modem type (any model ending in GPIO can be supported). Radio/Modem Type: STM32-DVM/MMDVM_HS-Raspberry pi Hat(GPIO). In the Expert section, go to MMDVM host, and scroll down to the OLED section. Make sure LogoScreensaver is set to "1", this leaves the screen on all the time. Otherwise, it goes blank when idle
[Update New FW] (pi-star / expert / ssh access / user: pi-star pass: raspberry) You can directly run upgrade commands without the need to set jumpers (run in the Pi star terminal): sudo pistar-mmdvmhshatflash hs_dual_hat (if this command doesn't work, please try this command: mmdvm.club/index.php/wpsd .html)
