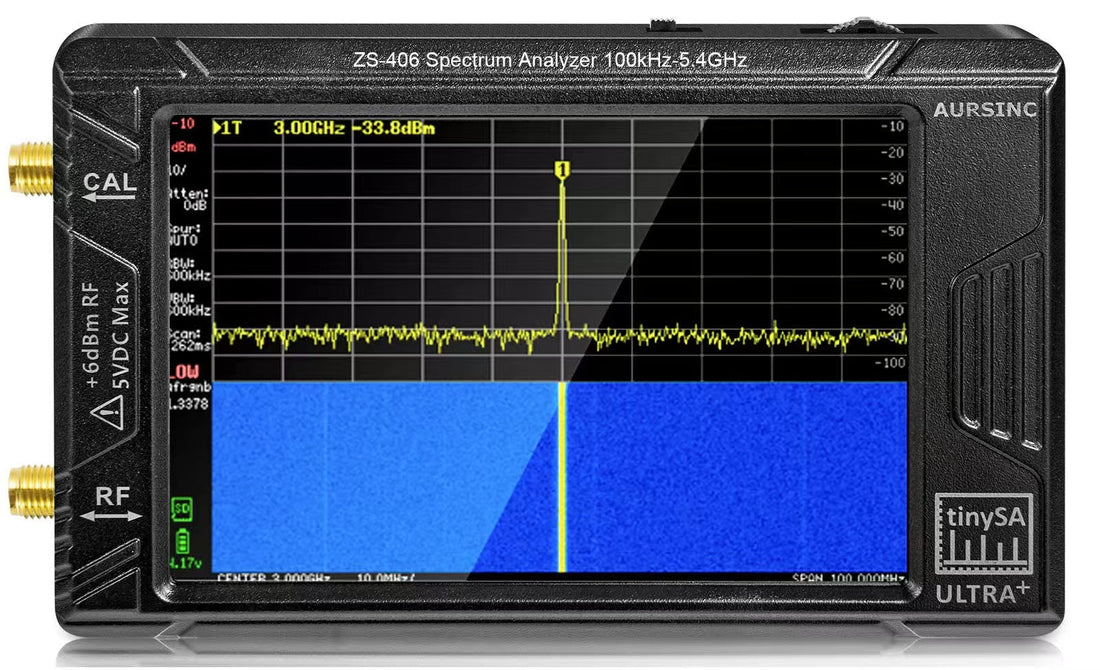

Unveiling the TinySA Ultra+ ZS406 Spectrum Analyzer: Your Ideal Companion for Precise RF Testing
Share
The Significance of Spectrum Analyzers
In the dynamic fields of electronics and communication, having a reliable spectrum analyzer is crucial. Whether you're an engineer trying to perfect a new wireless gadget or a radio enthusiast aiming to enhance signal quality, this instrument is the key to unlocking the mysteries of electromagnetic waves. However, traditional spectrum analyzers are often large, expensive, and difficult to use. Enter the TinySA Ultra+ ZS406—a compact, high - performance device that brings professional - level analysis right to your fingertips.
Technical Advantages of the TinySA Ultra+ ZS406
The TinySA Ultra+ ZS406 is designed to overcome the limitations of conventional spectrum analyzers:
- Wide Frequency Range: It can operate from 100kHz to an impressive 5.4GHz, making it suitable for a wide variety of applications, including cellular networks, Wi - Fi, and radio astronomy.
- Resolution filters with a width of 0.2, 1, 3, 10, 30, 100, 300, 600 and 850 kHz.
- Outstanding Dynamic Range: A dynamic range of 100dB ensures that both weak and strong signals can be accurately measured without distortion.
- Built - in Signal Generator: This feature enables you to perform transmission and reception tests without the need for additional equipment.
- Long - lasting Battery: A 5000mAh battery provides up to 3 hours of continuous operation, allowing you to work freely in the field.
- User - friendly Interface: The 4.0 inch touchscreen and intuitive controls make it easy to use, even for those new to spectrum analysis.
- Built-in LNA: Built-in optional 20dB LNA with Noise Figure of 5dB up to 4GHz.
Applications
1. Antenna Design and Testing
Ham radio operators and engineers can use the TinySA Ultra+ ZS406 to optimize antenna performance. By measuring the Standing Wave Ratio (SWR) and identifying resonance points, they can ensure that their antennas are operating at peak efficiency.
2. EMI/EMC Troubleshooting
In Research and development laboratory, this device is invaluable for detecting and resolving electromagnetic interference issues. It can quickly locate sources of noise that may affect the performance of electronic devices.
3. Wireless Network Optimization
For avionics technicians and radio techs, the TinySA Ultra+ ZS406 helps in analyzing signal strength and interference in wireless networks. This allows for better network planning and optimization.
Tips for Choosing a Spectrum Analyzer
When shopping for a spectrum analyzer, keep the following factors in mind:
- Frequency Range: Make sure it covers the frequencies you need for your specific applications.
- Resolution Bandwidth (RBW): A lower RBW provides more detailed spectral information.
- Dynamic Range: Higher dynamic range means better accuracy in measuring both weak and strong signals.
- Portability: A lightweight and compact design, like the TinySA Ultra+ ZS406, allows for easy use in the field.
- Cost - effectiveness: Look for a device that offers a good balance between price and performance.
Frequently Asked Questions
Q: Is the TinySA Ultra+ ZS406 suitable for beginners?
A: Yes! The intuitive interface and built - in tutorials make it easy for beginners to get started.
Q: Can I use it for both transmission and reception testing?
A: Absolutely. The built - in signal generator allows for comprehensive transmission and reception tests.
Take the Next Step
Are you ready to take your signal analysis to the next level? The TinySA Ultra+ ZS406 combines portability, precision, and affordability, making it the perfect choice for professionals and enthusiasts alike.
Explore the Product: AURSINC TinySA Ultra+ ZS406 Spectrum Analyzer
Watch the Video: Product Introduction Videos
